ELEVATED OIL TANK
Professional elevated oil tank systems for reliable fuel storage in drilling operations. Gravity-fed design with dual pump safety system ensures uninterrupted fuel supply and operational safety.
Product Showcase
Discover the advanced features and specifications of our high-performance elevated oil tank systems
Key Features

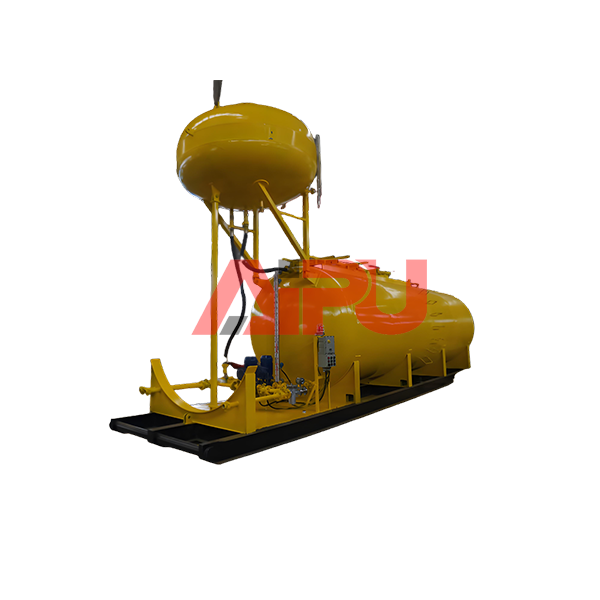

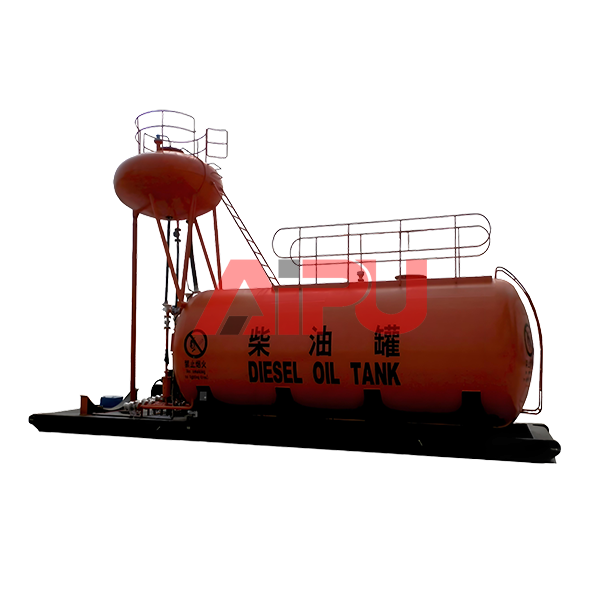

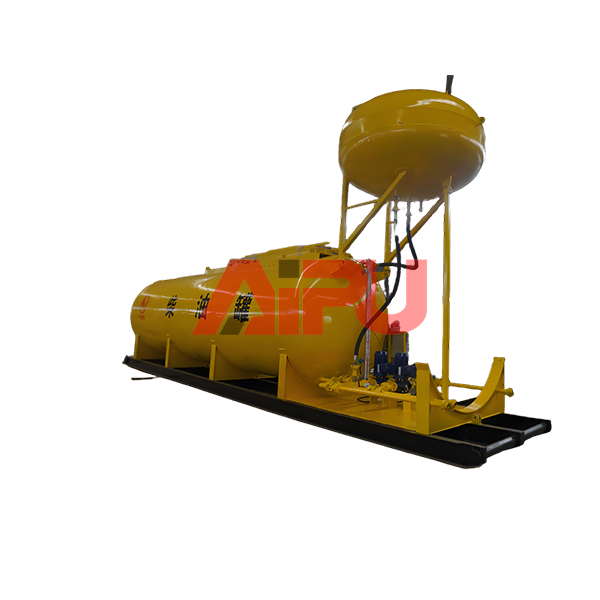

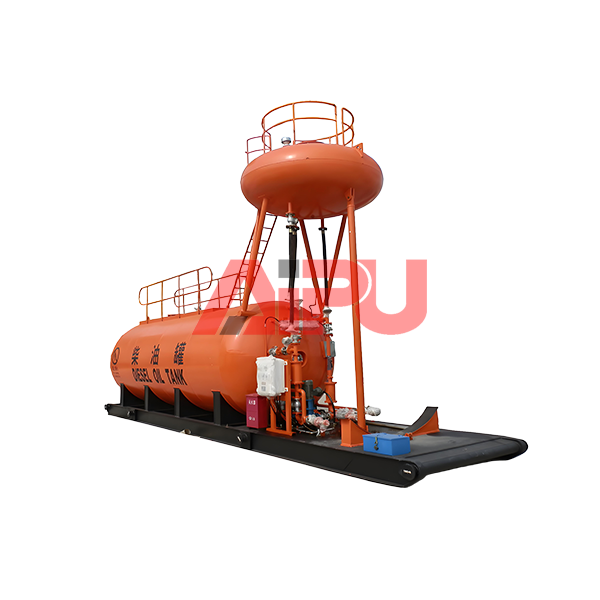

The elevated oil tank system consists of a large-capacity horizontal reserve tank and a smaller elevated tank interconnected through pumps and valves. This gravity-fed design provides reliable fuel storage and supply for drilling operations, reducing energy consumption and maintenance costs.
Dual Pump System
One pump for operation and one for backup with interlocked electrical controls for safety and maintenance convenience.
Gravity-Based Supply
Utilizes height differences for gravity flow fuel supply, reducing energy consumption and maintenance costs.
Optimized Layout
Saves ground space and enables more reasonable arrangement of other solid control system equipment.
Easy Monitoring
Higher position allows convenient observation and monitoring of oil levels inside the tank.
Technical Specifications
Detailed specifications for the AIPU Elevated Oil Tank systems
| Model | Total Capacity (L) | Reserve Tank Capacity (L) | Elevated Tank Capacity (L) | Pump Power (kW) | Working Pressure |
|---|---|---|---|---|---|
| EOT-5000 | 5000 | 4000 | 1000 | 2×1.5 | Atmospheric |
| EOT-8000 | 8000 | 6500 | 1500 | 2×2.2 | Atmospheric |
| EOT-10000 | 10000 | 8000 | 2000 | 2×3.0 | Atmospheric |
| EOT-15000 | 15000 | 12000 | 3000 | 2×4.0 | Atmospheric |
| EOT-20000 | 20000 | 16000 | 4000 | 2×5.5 | Atmospheric |
More Optional Parameters
Elevated Oil Tank System Detailed Overview

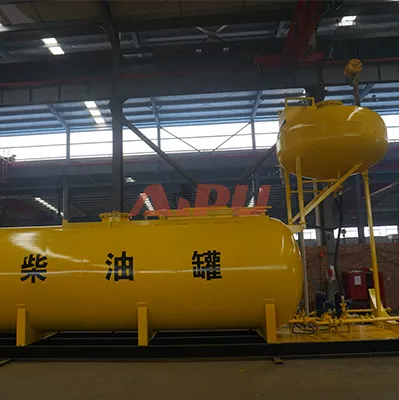

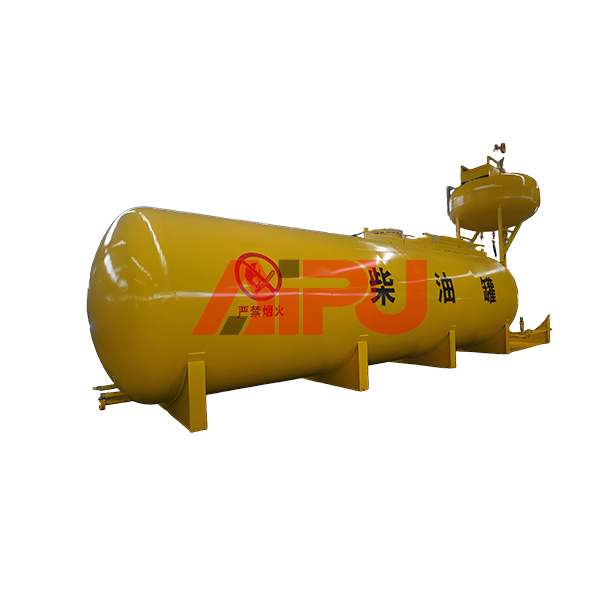

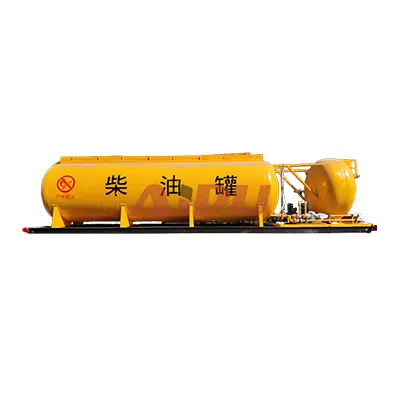

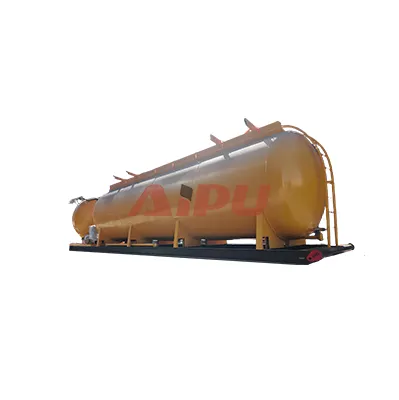

The elevated oil tank system is designed to provide reliable fuel storage and supply for drilling operations. It consists of one large-capacity horizontal cylindrical reserve tank and one smaller elevated tank connected by hinges and supported during use, providing a greater liquid level height for gravity-based fuel supply.

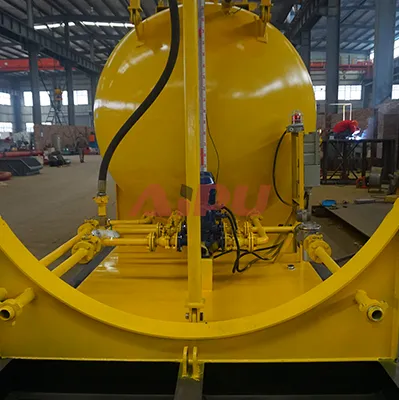

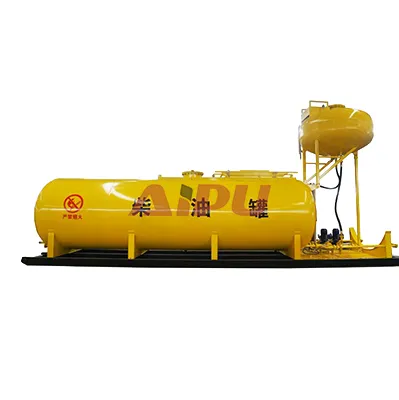

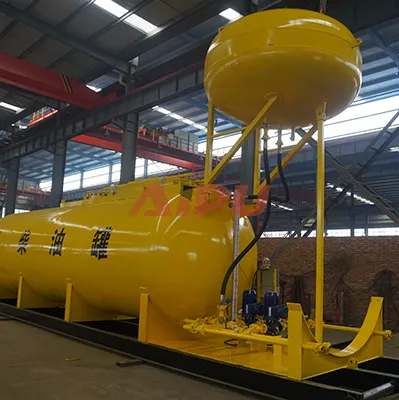

System Configuration: The tanks are interconnected through an oil pump, manifold, and stainless steel ball valves to achieve effective arrangement and utilization of diesel fuel. A flip ladder between the elevated tank and reserve tank provides safe access during maintenance.
System Features and Design
The elevated oil tank system incorporates several key design features:
- Dual Pump Safety System: Equipped with two oil pumps - one for operation and one for backup with interlocked electrical controls
- Gravity-Based Fuel Supply: Utilizes height differences to supply fuel by gravity flow, reducing energy consumption
- Optimized Spatial Layout: Saves valuable ground space on drilling sites
- Easy Liquid Level Monitoring: Elevated position allows convenient observation of fuel levels
- Reduced Contamination Risk: Minimizes direct ground contact and environmental contamination
Equipment Features and Advantages
Sufficient Storage Capacity: Capable of storing large amounts of oil to meet long-term operation needs of solid control systems.
Gravity-Based Advantages: Reduces reliance on power equipment like pumps, lowering both energy consumption and maintenance costs.
Operational Efficiency: The elevated design allows operators to easily monitor fuel levels and manage supply without complex equipment.
Customization Options
AIPU offers flexible customization to meet specific drilling requirements:
- Volume Variations: Custom sizes from 5,000L to 20,000L capacities
- Material Selection: Carbon steel with protective coatings or stainless steel options
- Pump Systems: Various pump configurations and control systems
- Safety Features: Custom safety systems including overflow protection and leak detection
- Mounting Options: Fixed or mobile configurations based on site requirements
The AIPU Elevated Oil Tank System is engineered for reliability in harsh drilling environments while maintaining operational efficiency and safety. Our design prioritizes ease of maintenance with accessible service points and quick-connect systems for routine maintenance tasks.
Application Scenarios
Versatile applications across various drilling and industrial operations
Oil & Gas Drilling Sites
Primary fuel storage solution for drilling rigs, providing reliable diesel supply for generators and equipment.
Industrial Power Generation
Backup fuel systems for industrial generators and power plants requiring gravity-fed fuel supply.
Agricultural Operations
Fuel storage for large-scale agricultural operations and remote farming sites.
Construction Sites
Mobile fuel storage for construction equipment and heavy machinery on remote job sites.
Marine Applications
Fuel storage for marine operations and coastal drilling platforms.
Remote Mining Operations
Reliable fuel supply for mining equipment in remote locations with limited infrastructure.
Why Choose AIPU Elevated Oil Tank
Industry-leading benefits for your fuel storage requirements
Reliable Fuel Supply
Ensures continuous fuel supply for drilling operations with dual pump system and gravity-fed design.
Reduced Energy Costs
Gravity-based supply reduces pump usage, lowering energy consumption by up to 40% compared to conventional systems.
Enhanced Safety
Dual pump interlock system and comprehensive safety features ensure operational safety in harsh environments.
Space Optimization
Elevated design saves valuable ground space, allowing more efficient site layout and equipment arrangement.
Easy Maintenance
Accessible design with flip ladder and convenient service points reduces maintenance time and costs.
Customizable Solutions
Flexible customization options to meet specific operational requirements and site conditions.
Customer Testimonials
What our clients say about AIPU Elevated Oil Tanks
We've been using AIPU's elevated oil tanks across three drilling sites. The gravity-fed system has significantly reduced our generator fuel consumption, and the dual pump setup has eliminated downtime during maintenance.
The space-saving design of AIPU's elevated tanks allowed us to optimize our drilling site layout. Their customization team worked closely with us to create the perfect solution for our remote location.
In our harsh desert environment, reliability is crucial. AIPU's elevated oil tanks have performed flawlessly for over two years with minimal maintenance. The corrosion-resistant coating has held up exceptionally well.
