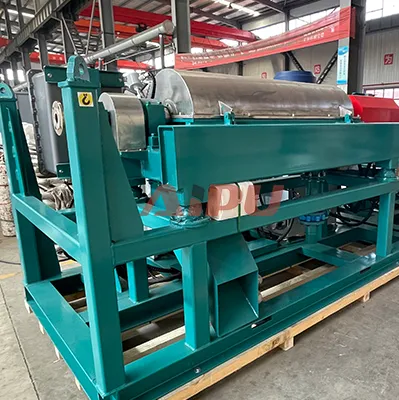

FULL HYDRAULIC CENTRIFUGE
High-performance fully hydraulic driven decanter centrifuge for superior solids separation in drilling mud treatment. Hydraulic drive system with 3180G force for heavy-duty applications.
info@aipusolidcontrol.comProduct Showcase
Discover the advanced features and specifications of our high-performance hydraulic centrifuge
Key Features
AIPU has collaborated with leading hydraulic system manufacturers to develop fully hydraulic-driven decanter centrifuges for global applications. The hydraulic drive system powers both bowl and scroll through dual hydraulic circuits driven by a single motor.
High G-Force
Up to 3180G force for superior solids separation efficiency in high-temperature weighted mud systems.

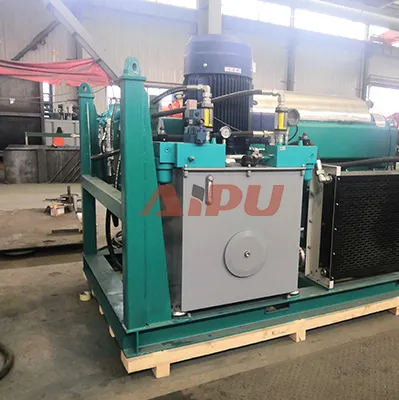

Hydraulic Drive System
Fully hydraulic driven with dual circuits for bowl and scroll, providing high torque for heavy-duty applications.
Premium Construction
High-grade stainless steel construction with hardfaced scroll flighting and precision dynamic balancing.
Easy Maintenance
Modular maintenance design with SKF/FAG bearings and ISO 9001 certified manufacturing.
Technical Specifications
Detailed specifications for the AIPU Full Hydraulic Centrifuge series
| Parameter | Specification |
|---|---|
| Model | APLW355×1257Y-N |
| Bowl Diameter | 355mm |
| Bowl Length | 1257mm |
| Max Capacity | 946 L/min |
| Max Speed | 3200rpm |
| Operating Speed | 2900rpm |
| Max G-Force | 3180G |
| Drive Type | Hydraulic drive |
| Power Unit | 37kW |
| Weight | Approx. 3500kg |
Customization Options
Full Hydraulic Centrifuge Detailed Overview
The AIPU Full Hydraulic Centrifuge is a high-performance decanter centrifuge specifically designed for demanding drilling mud treatment applications. Developed in collaboration with leading hydraulic system manufacturers, this equipment features a fully hydraulic-driven system that powers both the bowl and scroll through dual hydraulic circuits.
Primary Application: Superior performance in high-temperature weighted mud systems, providing efficient solids separation and reducing overall drilling costs. Compact skid-mounted design for easy field installation and high-torque hydraulic drive for heavy-duty applications.
Applications & Performance
The Full Hydraulic Centrifuge is widely used in:
- High-temperature weighted mud systems
- Offshore and onshore drilling operations
- Environmental dredging and waste treatment
- Oil-based mud recovery systems
- Mining and industrial separation processes
Performance Benefits:
- Superior solids separation efficiency with up to 3180G force
- Reduces waste volume and treatment costs by up to 35%
- Minimizes chemical consumption and environmental impact
- Extends equipment life in downstream processes
AIPU Full Hydraulic Centrifuge Technical Features
- Fully hydraulic-driven system for both bowl and scroll
- High-grade stainless steel construction for durability
- Hardfaced scroll flighting for extended service life
- Precision dynamic balancing for smooth operation
- SKF/FAG premium bearings for reliability
- Modular maintenance design for reduced downtime
- ISO 9001 certified manufacturing process

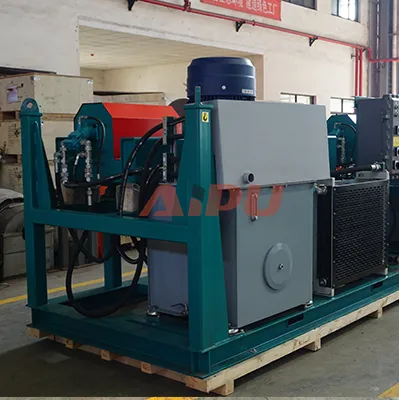

- Compact skid-mounted design for easy installation
- Customizable electrical standards for global applications
Customization Options
Tailored for global markets, AIPU offers flexible configurations:
- Electrical standards: Customization for different regional requirements (ATEX/IEC/UL/DGMS)
- Material selection: Various stainless steel grades and hardfacing options
- Hydraulic systems: Different pressure and flow configurations

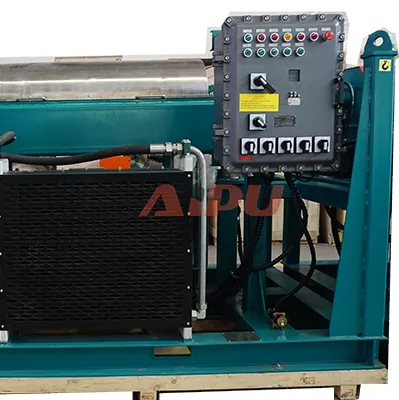

- Control systems: Manual, semi-automatic, or fully automatic controls
- Surface finishing: Custom RAL colors and corrosion-resistant coatings
- Certifications: Compliance with international standards and certifications
The AIPU Full Hydraulic Centrifuge is engineered to withstand the harshest drilling environments while maintaining optimal performance. Our centrifuges are designed with operator safety and ease of maintenance in mind, featuring quick-release mechanisms for component changes and accessible service points for routine maintenance.
Application Scenarios
Versatile applications across various drilling and separation operations
High-Temperature Weighted Mud
Superior performance in high-temperature weighted mud systems with efficient solids separation.
Offshore Drilling Platforms
Compact design and hydraulic drive make it ideal for space-constrained offshore installations.
Industrial Separation
Effective for various industrial separation processes requiring high G-force and reliability.
Waste Treatment
Efficiently treats drilling waste, recovering valuable fluids and reducing environmental impact.
Oil-Based Mud Recovery
Optimized for oil-based mud systems, maximizing fluid recovery and minimizing waste.
Mining Operations
Heavy-duty construction suitable for mining and mineral processing applications.
Why Choose AIPU Full Hydraulic Centrifuge
Industry-leading benefits for your drilling and separation operations
Superior Separation Efficiency
Up to 3180G force provides exceptional solids separation, ensuring clean drilling fluid and reducing downstream processing requirements.
Hydraulic Drive Reliability
Fully hydraulic-driven system offers high torque, smooth operation, and reduced mechanical wear compared to traditional drives.
Reduced Operating Costs
Minimizes chemical consumption, reduces waste volume by up to 35%, and extends the life of downstream equipment.
Easy Maintenance & Service
Modular design with quick-release components reduces downtime and simplifies maintenance procedures.
Factory Direct Quality
AIPU manufactures with ISO 9001 certification, ensuring consistent quality control and competitive pricing.
Global Customization
Equipment can be customized for different electrical standards, materials, and operational requirements worldwide.
Customer Testimonials
What our clients say about AIPU Full Hydraulic Centrifuges
We've been using the AIPU Full Hydraulic Centrifuge for our offshore operations for over 18 months. The hydraulic drive system provides the torque we need for our weighted mud, and maintenance has been minimal. The separation efficiency is exceptional.
The AIPU hydraulic centrifuge has significantly reduced our waste treatment costs. The 3180G force separates solids much more effectively than our previous equipment, and the hydraulic drive has proven extremely reliable in our harsh operating conditions.
We needed a centrifuge that could handle high-temperature weighted mud, and AIPU delivered. The customization options allowed us to get exactly what we needed for our specific application. The support team has been responsive and knowledgeable.
