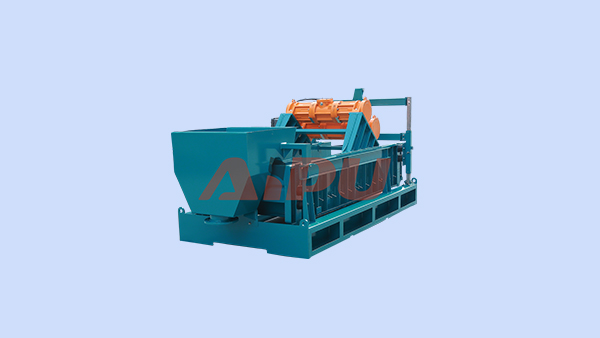

Properly balancing the dual motors on a shale shaker is a critical operational procedure in drilling fluid management. An unbalanced shaker can lead to uneven screen motion, premature screen failure, reduced solids removal efficiency, and excessive vibration that damages the entire machine. The primary goal is to ensure both motors work in perfect synchrony, creating a uniform linear motion across the entire screen surface for optimal performance. This process requires careful attention to detail and a methodical approach.

Understanding the Importance of Motor Synchronization

Dual motors on a linear motion shale shaker are designed to counter-rotate. This means their centrifugal forces combine to produce a linear, elliptical, or circular motion, depending on the machine's design. When these motors are out of sync, their forces work against each other. This conflict results in a rocking or twisting motion, often referred to as "egg-beating." This irregular motion fails to transport solids effectively off the screen, leading to poor separation, fluid loss, and rapid screen wear. A balanced system, however, provides smooth, efficient solids conveyance and maximizes screen life.

The Step-by-Step Balancing Procedure

Before starting, always consult the specific manufacturer's manual for your shaker model and ensure the equipment is locked out and tagged out for safety. Begin by visually inspecting both motors and their mounts for any signs of damage or wear. Check that the weights on the motor shafts are identical and securely attached. Even a small difference in weight can cause significant imbalance.

Start the shaker and observe the motion of the screen. A balanced shaker will have a uniform, fluid motion across its entire width. If you observe a rocking or uneven motion, it's a clear sign of imbalance. The most common method for correction involves adjusting the phase angle between the two motors. This is typically done by loosening the bolts on the motor coupling, rotating one motor shaft slightly relative to the other, and then retightening. This fine-tuning alters how the forces from each motor interact. Make small, incremental adjustments, observing the screen motion after each change until a smooth, linear motion is achieved.

Common Pitfalls and Maintenance Tips

One of the most frequent mistakes is assuming both motors are identical without verification. Over time, motors can be replaced with non-identical units, or their internal components can wear differently, leading to inherent imbalance. Always use motors from the same manufacturer and with the same specifications. Another common issue is neglecting the condition of the vibration isolation mounts. If these are worn or damaged, the entire shaker box can move erratically, mimicking the symptoms of unbalanced motors. Regularly check and replace these mounts as part of a preventative maintenance schedule.

For optimal and consistent performance, establish a routine maintenance check. This includes verifying motor balance at the start of every shift or after any screen change. Keeping a log of adjustments and motor performance can help identify long-term trends and potential issues before they lead to equipment failure.

For operators seeking reliable and high-performance solids control equipment, Aipu offers a range of robust shale shakers engineered for durability and efficient operation. Their equipment is designed with user-friendly features that simplify critical maintenance tasks like motor balancing, contributing to lower total cost of ownership and superior drilling fluid processing.
