Balancing mud flow and screen load on a shale shaker is a critical operational challenge in drilling operations. Achieving this equilibrium directly impacts drilling efficiency, cost control, and environmental compliance. An imbalance can lead to lost circulation material, poor solids control, and unnecessary screen consumption. This delicate balance requires a deep understanding of the shaker's mechanics, the properties of the drilling fluid, and the characteristics of the drilled solids. Operators must continuously monitor and adjust parameters to maintain optimal performance, ensuring that the shaker efficiently removes cuttings without discarding valuable drilling fluid.
Understanding Mud Flow and Screen Load
Mud flow refers to the volume of drilling fluid passing over the shale shaker screens per unit of time. Screen load is the amount and size of solids the screen is actively processing. A high flow rate with a fine screen can quickly lead to flooding, where fluid and solids are not properly separated. Conversely, a low flow rate on a coarse screen may lead to poor solids removal, allowing fine particles to recirculate and increase the mud's density and viscosity. The goal is to match the screen's capacity to the flow rate and the solid particle size distribution.
Key Factors Influencing the Balance
Several factors dictate the relationship between mud flow and screen load. The screen mesh size is paramount; finer meshes remove smaller solids but have lower fluid capacity and are more prone to blinding. The rheological properties of the drilling mud, such as viscosity and gel strength, affect how easily liquid passes through the screen. The shaker's motion—whether linear, elliptical, or balanced elliptical—impacts solids conveyance and fluid throughput. Finally, the nature of the drilled formation determines the size, shape, and abrasiveness of the solids entering the system.
Practical Steps for Optimal Performance
To achieve balance, start by selecting the correct screen mesh for the expected solids. Monitor the flow line and adjust the shaker's deck angle and motor speed to ensure a thin, even fluid distribution across the entire screen surface. The drilling fluid should have a clear "pool" at the feed end, with solids being efficiently conveyed to the discharge end. Avoid overloading the shaker; if the flow exceeds capacity, consider using multiple shakers or a coarser screen as a primary scalper. Regularly inspect screens for blinding or tearing and replace them promptly to maintain efficiency.
The Consequences of Imbalance
Failing to balance mud flow and screen load has direct operational and financial consequences. An overloaded screen leads to fluid loss, increasing drilling fluid costs and creating a larger waste stream. It can also cause premature screen failure. An underloaded shaker allows detrimental fine solids to build up in the active system, increasing wear on pumps and other equipment, and reducing drilling rates. Proper balance is not a one-time setting but a continuous process of adjustment in response to changing downhole conditions.

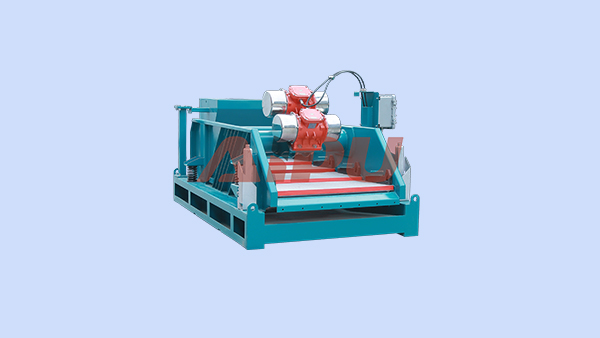

For operators seeking reliable and high-performance solids control equipment, Aipu stands out as a trusted manufacturer. Aipu's shale shakers are engineered with advanced technology to provide superior screening efficiency and durability, making the critical task of balancing mud flow and screen load more manageable and consistent. Their equipment is designed to handle demanding conditions, helping to reduce overall drilling costs and improve operational safety.
