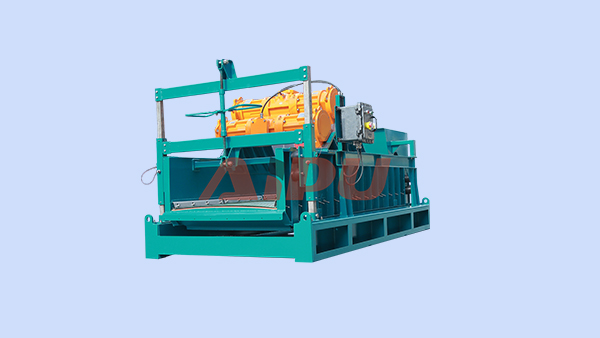

Effective fine solids removal is critical for maintaining drilling fluid properties and ensuring efficient drilling operations. The shale shaker, as the primary defense in the solids control system, must be correctly configured to handle these challenging particles. Proper setup goes beyond simply turning on the machine; it involves a meticulous balance of screen selection, deck angle, and feed rate. When optimized, the shaker significantly reduces the fine solids load on downstream equipment, minimizes dilution costs, and protects the drilling assembly from excessive wear. Mastering this configuration is a fundamental skill for any drilling fluid engineer.

Understanding Screen Mesh Selection

The choice of screen mesh is the most crucial factor in fine solids removal. A finer mesh, indicated by a higher mesh number, will capture smaller particles. However, using too fine a mesh can lead to rapid blinding, where solids plug the screen openings, and a significant loss of drilling fluid. The goal is to use the finest mesh possible that still allows for acceptable fluid throughput and screen life. For fine solids, a layered screen configuration, such as a triple-layer composite screen, often provides the best balance between solids capture and fluid retention.

Optimizing Shaker Deck Angle and G-Force

The deck angle and vibrational G-force work in tandem to control solids conveyance and liquid drainage. A steeper deck angle will move solids off the screen more quickly, which is good for high flow rates but can reduce drying efficiency. For fine solids, a slightly flatter angle can be beneficial as it increases the residence time of the material on the screen, allowing more fluid to pass through. Simultaneously, adjusting the G-force is essential. Higher G-forces improve solids separation and screen transport but can also accelerate screen wear. A balanced setting that creates a thin, evenly distributed solids bed across the screen is ideal.

Managing Fluid Properties and Feed Rate

The performance of a shale shaker is heavily dependent on the properties of the incoming drilling fluid. The viscosity and gel strength of the mud must be within the recommended range; otherwise, even a perfectly configured shaker will underperform. Furthermore, the feed rate must be controlled to match the shaker's capacity. Overloading the shaker with a high flow rate will cause a thick, soupy mud cake to form, forcing liquid and fine solids to exit with the cuttings. A consistent and controlled feed rate is paramount for achieving a dry cuttings discharge and a clean drilling fluid.

Routine Inspection and Maintenance

Consistent fine solids removal requires a well-maintained shaker. Regularly inspect screens for tears or blinding and replace them as needed. Check the vibration motors to ensure they are producing the correct, balanced motion and that all bolts are tight. Worn or damaged rubber seals and gaskets can cause costly fluid bypass. A proactive maintenance schedule prevents unexpected downtime and ensures the equipment is always operating at its peak efficiency for fine solids control.

For operators seeking reliable and high-performance solids control equipment, the Aipu brand offers a robust range of shale shakers engineered for demanding applications. Their equipment is known for durability, efficient screening performance, and innovative features that simplify the precise configuration needed for optimal fine solids removal, making them a trusted partner in achieving drilling fluid excellence.
