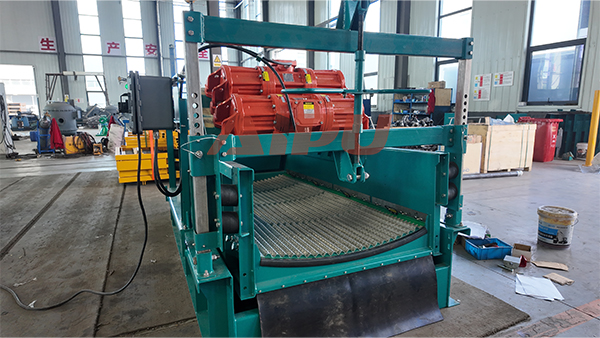

Installing a shale shaker correctly is a critical procedure for ensuring efficient solids control and drilling fluid management on any drilling rig. A proper installation guarantees optimal performance, maximizes screen life, and contributes to a safer working environment. This step-by-step guide provides clear instructions for the safe and effective installation of this essential solids control equipment, focusing on practical execution and key considerations for rig personnel.
Pre-Installation Preparation and Safety
Before any physical work begins, a thorough site assessment is mandatory. Ensure the designated location on the rig floor is level, structurally sound, and has sufficient space for operation and maintenance access. Verify that all necessary utilities, including electrical power and connections for the fluid discharge system, are readily available. Crucially, review all safety protocols. This includes locking out and tagging out all energy sources, confirming the shaker and its components are free from damage after transport, and ensuring all personnel involved are wearing appropriate Personal Protective Equipment (PPE).
Positioning and Securing the Shaker Skid
Carefully move the shale shaker skid to its predetermined location using appropriate lifting equipment. Use certified slings and follow the manufacturer's designated lift points. Once positioned, use a spirit level to check that the skid is perfectly level in all directions. An unlevel installation can cause uneven screen wear, poor solids conveyance, and reduced processing efficiency. Securely fasten the skid to the rig substructure using the provided bolts and hardware to prevent any movement or vibration during operation.
Connecting Electrical and Plumbing Systems
With the unit securely in place, proceed to connect the electrical wiring. A qualified electrician must perform this task to ensure all connections comply with local and site-specific electrical codes. Connect the power supply to the motor control panel. Next, install the feed and discharge plumbing. Connect the flow line from the mud tanks to the shaker's inlet box. Attach the underflow (processed drilling fluid) discharge chute to the clean mud tank and the solids discharge chute (for cuttings) to the appropriate collection point. Ensure all connections are tight and leak-free.
Installing and Tensioning the Screen Panels
Installing the screen panels is a delicate yet vital step. Select the correct mesh size screen for the current drilling conditions. Carefully place the screen panel onto the shaker basket, ensuring it sits flat and is properly aligned with the sealing gaskets. Follow the manufacturer's specific instructions for the tensioning mechanism, whether it uses a rubber plug system, a hook-strip, or a tensioning bolt system. Apply tension evenly across the entire screen to prevent premature failure and ensure effective solids separation. An improperly tensioned screen will blind quickly and fail to perform as intended.
Final Inspection and Commissioning
Before starting the shaker, conduct a final comprehensive inspection. Double-check all electrical connections, plumbing, and securing bolts. Manually rotate the vibrator motor to ensure it moves freely. Verify that the screen panels are correctly installed and tensioned. Clear the area of all tools and personnel. Start the shaker motor and observe its operation. Listen for any unusual noises and check for excessive vibration. Once you confirm it is running smoothly, you can gradually introduce drilling fluid to begin the solids control process.
