CENTRIFUGAL DEGASSER
Compact, high-efficiency centrifugal degasser for atmospheric gas removal in drilling operations. Removes H₂S, CO, CH₄ gases with 95%+ efficiency, restores mud properties, and features dual-function design as agitator.
info@aipusolidcontrol.comProduct Showcase
Discover the advanced features and specifications of our high-efficiency centrifugal degasser
Key Features

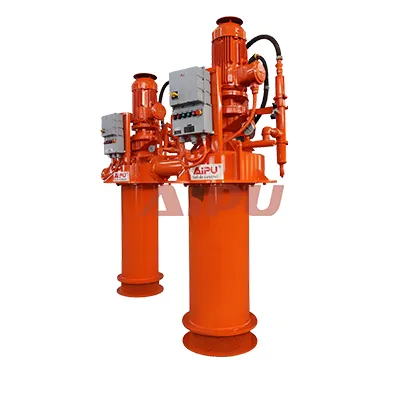

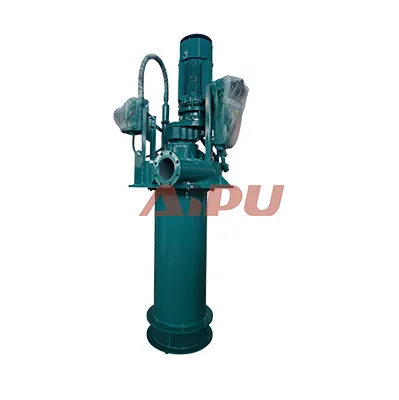

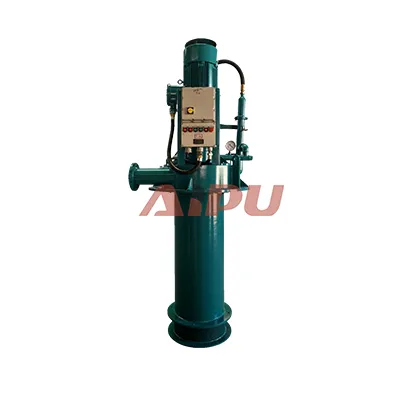

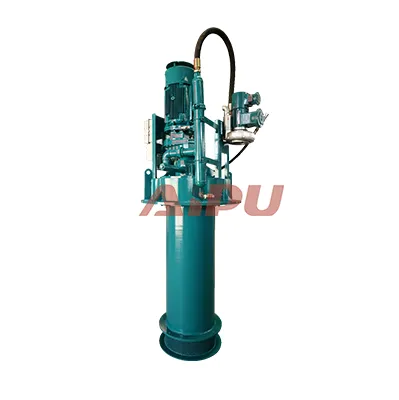

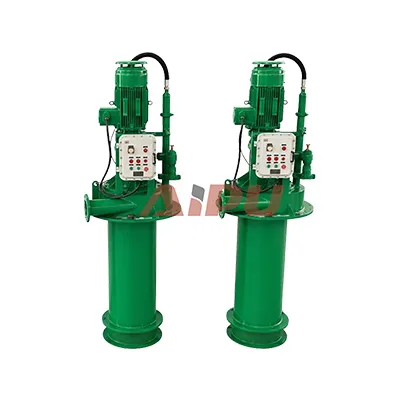

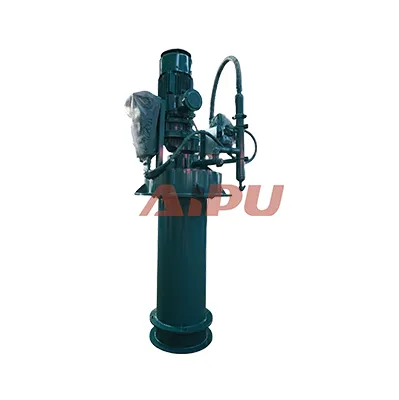

The AIPU Centrifugal Degasser (APLCQ300) is an efficient atmospheric degasser designed to remove gas bubbles from drilling fluid using centrifugal force. It creates turbulent thin-wall flow to rapidly rupture gas bubbles for exhaust discharge, restoring mud density and viscosity while serving as a high-torque agitator.
Compact Vertical Design
Space-efficient footprint (1.15m×1.05m base) ideal for space-limited drilling platforms and operations.
Dual Function Operation
Serves as both degasser and 22kW high-torque agitator for mud homogenization and gas removal.
No Feed Pump Required
Self-priming design eliminates need for additional feed pumps, reducing equipment costs and complexity.
High Efficiency
95%+ gas removal efficiency with 300m³/h processing capacity for demanding drilling operations.
Technical Specifications
Detailed specifications for the AIPU APLCQ300 Centrifugal Degasser
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | APLCQ300 | Gas Capacity | 30m³/h |
| Flow Rate | 300m³/h | Drive Motor | 22kW |
| Inlet Bore (ID) | 20" | Vacuum Pump | 1.1kW |
| Outlet (ID) | 6" | Dimensions (L×W×H) | 1150×1054×3110mm |
| Vent (ID) | 2" | Weight | 1400kg |
| Efficiency | ≥95% | Compliance | API Standards, HSE Requirements |
Customization Options
Centrifugal Degasser Detailed Overview
The centrifugal degasser, also known as an atmospheric degasser, is a high-efficiency specialized equipment for removing gas bubbles from aerated drilling fluid. Utilizing centrifugal force to create turbulent thin-wall flow, it rapidly ruptures gas bubbles for exhaust discharge. The APLCQ300 model is designed and manufactured in strict compliance with API standards, meeting all HSE requirements for safe and reliable operation.
Primary Application: As a compact, efficient atmospheric degasser, it is widely used in petroleum drilling, HDD operations, CBM extraction, shale gas drilling, and geothermal drilling where space constraints and high-efficiency gas removal are critical requirements.
Applications & Performance
The centrifugal degasser provides essential gas removal capabilities in various drilling applications:
- Fluid Optimization: Removes H₂S, CO, and CH₄ gases to restore mud density and viscosity stability
- Equipment Protection: Reduces gas corrosion on pumps, valves, and other downstream equipment
- Dual Functionality: Serves as 22kW high-torque agitator for mud homogenization and mixing
- System Integration: Enhances overall solids control system performance when combined with shakers, centrifuges, and other equipment
- Space-Constrained Operations: Ideal for offshore platforms and locations with limited available space
- CIS and EU Markets: Preferred solution in regions requiring compact, high-efficiency degassing equipment
AIPU Centrifugal Degasser Technical Advantages
- Zero Feed-Pump Requirement: Self-priming design eliminates the need for additional feed pumps
- Space-Efficient Design: Compact vertical footprint (1.15m×1.05m base area) for space-limited installations
- High Processing Capacity: 300m³/h flow rate with 95%+ gas removal efficiency
- Maintenance-Friendly: 1.4-ton configuration with accessible service points for easy maintenance
- Dual-Function Operation: Combines degassing and agitation functions in a single unit
- Market Preference: Preferred solution in CIS and EU markets for its compact design and efficiency
- Compliance Ready: Designed to meet API standards and HSE requirements
- Corrosion Resistance: Available with various material options for different operating environments
- Safety Features: Includes necessary safety interlocks and monitoring systems
How It Works
The centrifugal degasser operates by creating a high-velocity vortex within the separation chamber. Drilling fluid enters tangentially, creating centrifugal force that separates gas from liquid. The turbulent thin-wall flow rapidly ruptures gas bubbles, which are then exhausted through the vent port. The degassed fluid exits through the bottom outlet, while the separated gases are safely vented away from the working area.
Customization Options
Tailored for global markets and specific customer requirements, AIPU offers comprehensive customization:
- Electrical Standards: Customization for different regional voltage/frequency requirements (50/60Hz)
- Material Selection: Carbon steel, stainless steel, or H₂S-resistant alloys based on operating conditions
- Certification Packages: ATEX, IEC, UL, DGMS certifications available for different market requirements
- Design Variations: Custom mounting options, additional ports, or modified configurations
- Control Systems: Manual, semi-automatic, or fully automated control options
- Surface Finishing: Custom coating colors per customer specifications using RAL color system
- Safety Enhancements: Additional safety interlocks, monitoring systems, and warning devices
The AIPU Centrifugal Degasser is engineered to provide reliable gas removal in the most demanding drilling environments. Its compact design makes it particularly suitable for space-constrained operations such as offshore platforms, while its high efficiency ensures optimal drilling fluid properties are maintained throughout operations.
Application Scenarios
Versatile applications for compact, high-efficiency gas removal
Offshore Drilling Platforms
Compact vertical design ideal for space-constrained offshore operations where floor space is limited.
Remote Land Operations
Easy transport and installation make it suitable for remote drilling sites with limited infrastructure.
Mobile Drilling Rigs
Compact footprint and dual-function design ideal for mobile rigs requiring efficient space utilization.
Mud Mixing Systems
Serves as both degasser and high-torque agitator for integrated mud mixing and treatment systems.
Space-Constrained Locations
Minimal footprint makes it ideal for locations where traditional degassers cannot be accommodated.
CIS & EU Market Operations
Specifically designed to meet the preferences and requirements of CIS and European drilling markets.
Why Choose AIPU Centrifugal Degasser
Industry-leading benefits for compact, efficient gas removal
Space-Saving Design
Compact vertical footprint (1.15m×1.05m) requires minimal floor space, ideal for offshore platforms and mobile rigs.
Dual-Function Efficiency
Combines degassing and agitation functions in a single unit, reducing equipment count and installation complexity.
No Additional Feed Pump
Self-priming design eliminates the need for separate feed pumps, reducing capital and maintenance costs.
High Removal Efficiency
95%+ gas removal efficiency ensures optimal drilling fluid properties and enhanced drilling safety.
Easy Installation & Maintenance
Simple installation process and accessible design reduce downtime and maintenance requirements.
Market-Proven Performance
Preferred solution in CIS and EU markets with proven reliability in various drilling conditions.
Customer Testimonials
What our clients say about AIPU Centrifugal Degassers
We've been using the AIPU APLCQ300 centrifugal degasser on our offshore platform in the North Sea for over two years. The compact design was crucial for our space-limited platform, and the dual-function capability as both degasser and agitator saved us valuable deck space. Efficiency has been consistently above 95%.
Our operations in Kazakhstan required compact, efficient equipment that could handle harsh conditions. The AIPU centrifugal degasser has performed exceptionally well, with the added benefit of no feed pump requirement. Maintenance has been minimal, and the equipment has held up well in our high-H₂S environment.
The space-saving design of the AIPU centrifugal degasser was exactly what we needed for our mobile drilling rigs in the Appalachian Basin. The dual-function operation reduced our equipment count, and the self-priming design eliminated maintenance on feed pumps. Performance has been reliable across multiple wells.
