SHALE SHAKER
High-performance solids control equipment for efficient solid-liquid separation in oil & gas drilling operations. Reduces mud waste by up to 40% and lowers overall drilling costs.
info@aipusolidcontrol.comProduct Showcase
Discover the advanced features and specifications of our high-performance shale shaker
Key Features

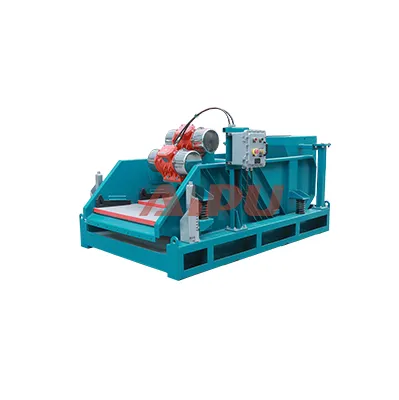

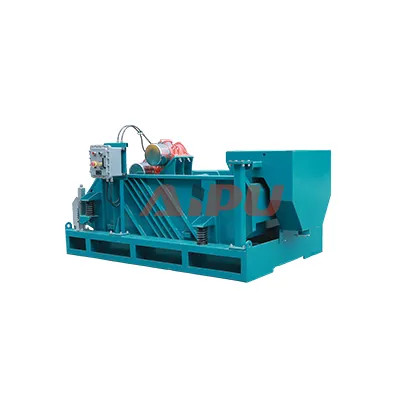

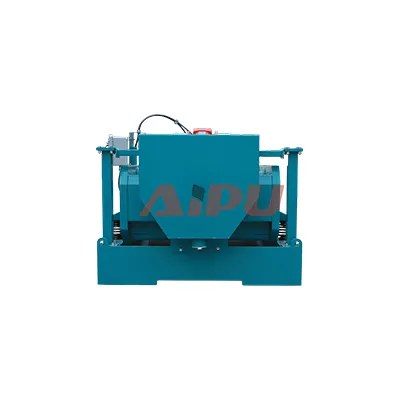

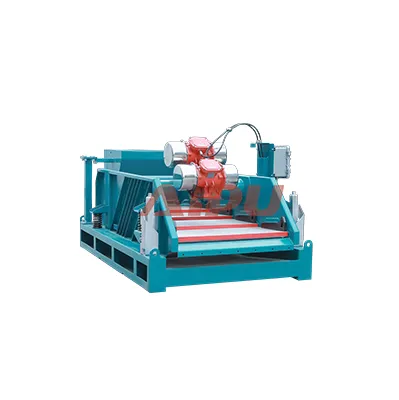

The AIPU Hunter-MG Shale Shaker effectively separates solid and liquid in drilling fluids and is widely used in the oil and gas drilling industry. Efficient solid-liquid separation reduces overall processing costs, minimizes mud waste losses, and lowers overall drilling costs.
High-G Force
Up to 7.3 G-force for superior solids separation efficiency.
High Treatment Capacity
Up to 420 m³/h processing capacity for demanding operations.
Corrosion Resistant
Premium materials & coatings for harsh drilling environments.
Low Maintenance
Quick screen replacement & minimal wear parts design.
Technical Specifications
Detailed specifications for the AIPU Hunter-MG Shale Shaker series
| Model | Capacity (m³/h) | Screen Area (㎡) | Screen Number | Motor Power (kW) | Deck Angle |
|---|---|---|---|---|---|
| Hunter-MG3 | 120 | 2.0 | 3 | 2×1.5 | -1 - +5° |
| Hunter-MG4 | 140 | 2.7 | 4 | 2×1.72 | -1 - +5° |
| Hunter-MG5 | 180 | 3.8 | 5 | 2×1.94 | -1 - +5° |
| Hunter-Mini | 50 | 1.35 | 2 | 2×0.75 | 0° |
| Hunter-MG4V | 120 | 2.7 | 4 | 2×1.72 | -1 - +5° |
| Hunter-MG5V | 120 | 2.8 | 5 | 2×1.94 | -1 - +5° |
| Hunter-MG4D | 280 | 5.4 | 8 | 2×2×1.72 | -1 - +5° |
| Hunter-MG4T | 420 | 8.1 | 12 | 3×2×1.72 | -1 - +5° |
More Optional Parameters
Drilling Fluid Shale Shaker Detailed Overview
The drilling fluid shale shaker separates solid particles from liquid in drilling fluid through high-frequency vibration. Comprising a screen body, vibrator, screen mesh, and damping device, the screen mesh serves as the core component whose material, aperture, and screening efficiency directly determine fluid purification effectiveness.
Primary Application: As the primary solids control equipment in drilling mud purification systems, it is widely used in petroleum drilling, HDD (Horizontal Directional Drilling), CBM (Coal Bed Methane) drilling, shale gas drilling, and environmental dredging operations.
Applications & Performance
As primary solids control equipment in drilling mud purification systems, it is widely used in:
- Petroleum drilling
- Horizontal Directional Drilling (HDD)
- Coal Bed Methane (CBM) drilling
- Shale gas drilling
- Environmental dredging
Performance Benefits:
- Efficient solid-liquid separation reduces downstream waste processing
- Minimizes overall treatment costs and mud loss, lowering total drilling expenses by up to 30%
AIPU Shale Shaker Technical Features
- High vibration intensity for superior solids separation
- Large screening area for higher processing capacity
- Adjustable deck angle during operation for optimal performance
- Compact structure for space-efficient installation
- Rapid screen replacement design reduces downtime
- Low maintenance costs with minimal wear parts
- Premium materials with stress-relief treatment
- Corrosion-resistant coating & stainless fasteners for longevity
- Extended screen lifespan through optimized design
Customization Options
Tailored for global markets, AIPU offers flexible configurations:
- Vibration motors: Martin/OLI/Ital-Vibras based on customer preference
- Electrical standards: Customization for different regional requirements
- Screen frame materials: Steel or composite framed options
- Configuration options: Dual/triple deck configurations available
- Specialized models: Drying shakers and application-specific designs
- Surface finishing: Custom coating colors per customer specifications

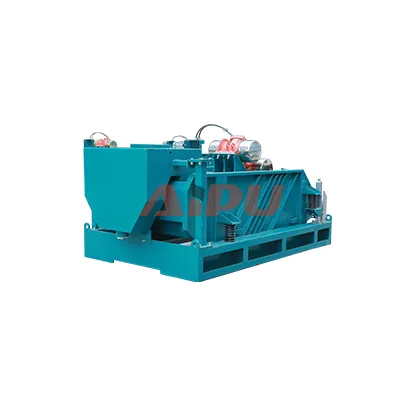

The AIPU Hunter-MG Shale Shaker is engineered to withstand the harshest drilling environments while maintaining optimal performance. Our shakers are designed with operator safety and ease of maintenance in mind, featuring quick-release mechanisms for screen changes and accessible service points for routine maintenance.
Application Scenarios
Versatile applications across various drilling operations
Onshore Oil & Gas Drilling
Widely used in land drilling operations, providing reliable solid-liquid separation solutions.
Offshore Drilling Platforms
Compact design and corrosion resistance make it ideal for offshore drilling platforms.
Solids Control Systems
Key equipment in solids control systems, providing efficient first-stage solids separation.
Fracturing Fluid Treatment
Effectively separates solid particles in fracturing operations to ensure fluid performance.
Waste Mud Management
Reduces waste mud volume and processing costs while meeting environmental requirements.
Oil-based Sludge Treatment
Efficiently treats oil-based sludge, recovers useful substances, and reduces environmental impact.
Why Choose AIPU Shale Shaker
Industry-leading benefits for your drilling operations
Effective Solids Separation
Efficiently separates solid particles from drilling fluids, providing clean fluid for subsequent processes and improving drilling efficiency.
Reduces Waste & Costs
Minimizes fluid loss and waste mud volume by up to 40%, significantly reducing overall drilling costs and environmental impact.
Versatile Application
Suitable for various drilling conditions and fluid types, both onshore and offshore, with customizable configurations.
Enhanced Drilling Efficiency
Maintains optimal drilling fluid properties, reducing downtime and improving operational efficiency by up to 30%.
Factory Direct Sales
AIPU is a top solid control equipment manufacturer with a 50,000 square meter factory ensuring quality production and competitive pricing.
Flexible Customization
Equipment can be flexibly customized according to customer needs, with various motor brands, screen types, and configurations available.
Customer Testimonials
What our clients say about AIPU Shale Shakers
We have been using the AIPU Hunter-MG5 shaker for over two years. The equipment runs stably with low maintenance costs. The processing capacity fully meets the needs of our offshore drilling platform, especially when dealing with high-viscosity mud.
AIPU's solids control system solution has helped us significantly reduce drilling costs. Their shakers are not only reliable in performance but also have responsive after-sales service and a professional technical team.
We use AIPU equipment in harsh cold environments. Their shakers work stably even in low temperatures. The quick screen replacement design greatly reduces our downtime and improves drilling efficiency.
Need Professional Shale Shaker Solutions?
Contact our experts for customized equipment and system recommendations tailored to your drilling requirements
