DESILTER
Advanced solids control equipment for efficient removal of particles between 15-44µm. Ensures optimal drilling performance and reduces operational costs.
info@aipusolidcontrol.comProduct Showcase
Discover the advanced features and specifications of our high-performance desilter
Key Features
AIPU APCN Desilter is designed for efficient third-phase solids control in drilling operations. It effectively removes solids particles between 15 and 44µm, ensuring optimal drilling mud performance and reducing drilling accidents.
Precision Separation
Removes particles between 15-44µm with high efficiency for cleaner drilling fluid.
Large Processing Capacity
Maximum support for processing capacity of 360 cubic meters per hour.
Easy Maintenance
Clamp type connection for easy installation and disassembly, reducing downtime.
Flexible Replacement
Bottom flow screen can be replaced according to specific requirements.
Technical Specifications
Detailed specifications for the AIPU APCN Desilter series
| Model | APCN60 | APCN120 | APCN240 | APCN360 |
|---|---|---|---|---|
| Capacity (m³/h) | 60 | 90-120 | 200-240 | 320-360 |
| Desilter Cones | 100x4 (4"x4) | 100x6 (4"x6) | 100x12 (4"x12) | 100x16 (4"x16) |
| Working Pressure | 0.25~0.45 MPa | |||
| Separation Point | 15~44μm | |||
| Bottom Shaker | Single deck screen sized about 1 m² driven by 0.4kW motor | |||
| Weight (kg) | 450 | 540 | 590 | 640 |
| Overall Dimensions | 1450×1640×1840mm | 1450×1640×1840mm | 1450×2380×1840mm | 1450×2380×1840mm |
More Optional Parameters
Hunter Series Specifications
Additional configuration options for specific project requirements
| Model | Hunter N120 | Hunter N240 | Hunter N360 | Hunter Mn120 |
|---|---|---|---|---|
| Capacity (m³/h) | 120 | 240 | 360 | 120 |
| Motor Power | 2×1.5kw | 2×1.5kw | 2×1.72kw | 2×0.75kw |
| Desilter Cones | Dn100x8 (4"x8) | Dn100x12 (4"x12) | Dn100x16 (4"x16) | Dn100x8 (4"x8) |
| Screen Size | 1165×585×40 (120mesh) ×3 | 1165×585×40 (120mesh) ×3 | 1165×585×40 (120mesh) ×4 | 750×900×27 (100mesh) ×2 |
| Screen Area (m²) | 2 | 2 | 2.7 | 1.35 |
Desilter Detailed Overview

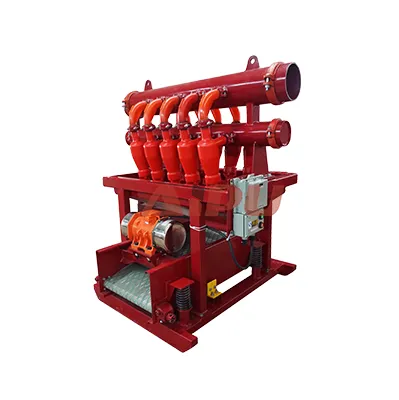

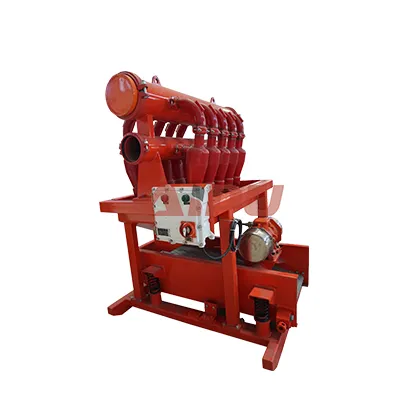

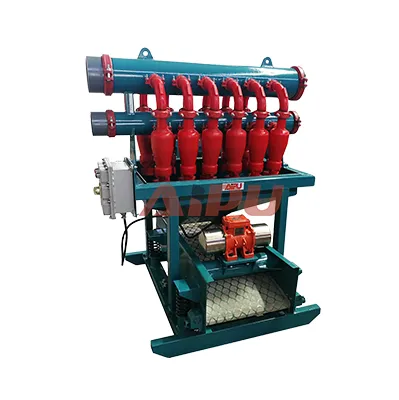

The AIPU APCN Desilter is a highly efficient solids control equipment designed for third-phase solids removal in drilling operations. Utilizing advanced hydrocyclone technology, it effectively separates fine silt-sized particles (15-44µm) from drilling fluids, ensuring optimal mud properties and drilling efficiency.
Primary Application: As essential equipment in drilling mud purification systems, it is widely used in oil and gas drilling operations, HDD (Horizontal Directional Drilling), CBM (Coal Bed Methane) drilling, and geothermal drilling projects for fine solids removal.
Working Principle
The desilter operates using centrifugal force within multiple hydrocyclones:
- Centrifugal Separation: Drilling mud enters the hydrocyclone tangentially, creating a vortex that separates solids by density
- Fine Particle Removal: Very fine silt particles (15-44µm) are forced to the walls and discharged through the underflow
- Clean Fluid Return: Cleaner drilling fluid exits through the overflow for further processing or reuse
- Multiple Cone Design: Configurations from 4 to 16 cones provide processing capacities up to 360 m³/h
Technical Advantages
- Durable Polyurethane Cones: 100% Polyurethane material ensures longer service life and superior wear resistance in abrasive drilling environments
- Clamp Type Connection: Simplifies installation and disassembly for easy maintenance and reduced downtime during operations

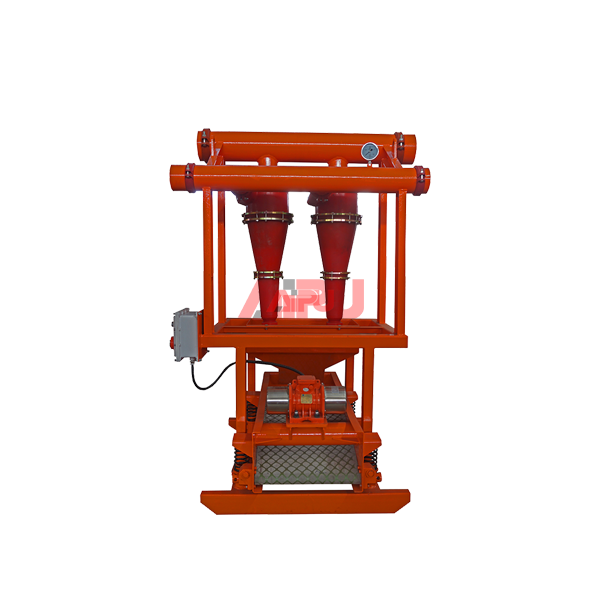

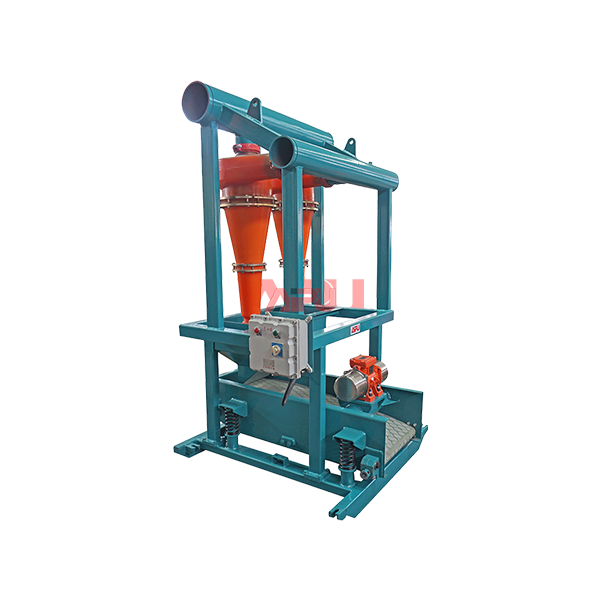

- Optional Bottom Shaker: Enhanced solids control with customizable shaker screen options for specific operational needs

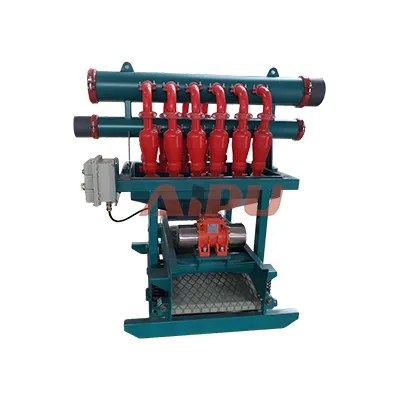

- Low Maintenance Design: Easy operation with fewer spare parts and simplified maintenance requirements, reducing operational costs
- Strict Quality Procedures: Implemented strict sand spraying procedures ensure consistent performance and reliability
- Corrosion Resistance: Utilized anti-abrasion and anti-corrosion paint extends equipment life in corrosive drilling environments
- Global Certifications: Available with ATEX, IEC, and other international certifications for worldwide deployment
- Cost Efficiency: High efficiency in solids removal translates to significant savings in drilling fluid costs and waste management
Applications & Performance Benefits
Performance Benefits:
- Effective removal of fine abrasive particles extends the life of downstream equipment and centrifuge
- Maintains optimal drilling fluid properties, improving drilling efficiency and reducing drilling accidents
- Reduces waste management costs by efficiently separating fine solids from drilling fluids
- Improves overall drilling performance by maintaining consistent mud properties and reducing fluid loss
- High processing capacity supports demanding drilling operations with minimal downtime
The AIPU APCN Desilter is engineered to withstand the most demanding drilling environments while delivering reliable performance. Our desilters are designed with operator safety and ease of maintenance in mind, featuring quick-connect fittings, accessible service points, and modular components for routine maintenance.
Application Scenarios
Versatile applications across various drilling operations
Third-Phase Solids Control
Achieves effective third-phase solids control by removing particles between 15-44µm, ensuring optimal drilling mud performance.
Main Equipment
Essential main equipment in the solid control system for drilling operations.
Performance Optimization
Effectively removes small solid particles to maintain drilling mud properties and reduce drilling accidents.
Waste Management
Critical component in solids control systems and waste management processes.
Why Choose AIPU Desilter
Industry-leading benefits for your drilling operations
Fine Solids Removal
Efficiently removes particles between 15-44µm with high precision, ensuring cleaner drilling fluid and improved drilling efficiency.
High Processing Capacity
Maximum support for processing capacity of 360 cubic meters per hour, handling demanding drilling operations with ease.
Easy Maintenance & Installation
Clamp type connection simplifies installation and disassembly, reducing downtime and operational costs.
Durable Construction
100% Polyurethane cones and corrosion-resistant coatings ensure long service life in harsh drilling environments.
Customer Testimonials
What our clients say about AIPU Desilters
The AIPU APCN Desilter has significantly improved our drilling fluid quality. The fine solids removal (15-44µm) has reduced equipment wear and improved our overall drilling efficiency by 25%.
We've been using AIPU desilters for over three years in our offshore operations. The 360 m³/h capacity handles our high-volume drilling perfectly, and maintenance is minimal.
Excellent equipment with great after-sales support. The polyurethane cones have shown exceptional wear resistance in our abrasive drilling conditions. Highly recommend AIPU desilters.
Need Professional Desilter Solutions?
Contact our experts for customized equipment and system recommendations tailored to your drilling requirements
