CUTTINGS DRYER
High-efficiency centrifugal separation system for drilling cuttings with adjustable screen baskets. Processes up to 40 m³/h with superior solid-liquid separation and customizable particle size control.
Product Showcase
Advanced centrifugal separation systems for efficient drilling cuttings processing
Key Features
The cuttings dryer employs centrifugal separation with adjustable screen baskets for optimal particle size control. Features include feed distribution, liquid/solid separation, and scraped discharge with air knives and flushing pipelines for continuous operation.

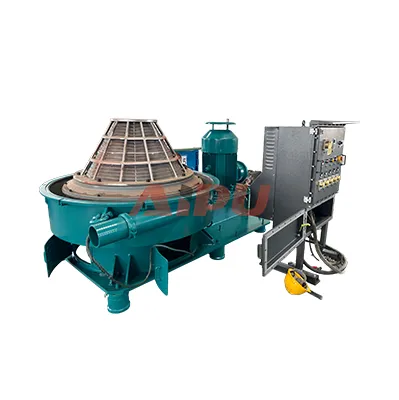

Adjustable Screen Baskets
Customizable gap sieve baskets for precise particle size separation based on specific requirements.
High Processing Capacity
Processes up to 40 m³/h drilling cuttings with efficient centrifugal separation technology.
Reliable Operation
Equipped with air knives and flushing pipelines to ensure continuous, uninterrupted operation.
Compact Design
Space-efficient design with stable and reliable performance for industrial applications.
Technical Specifications
Comprehensive specifications for APVCD series cuttings dryers
| Model | APVCD930 | APVCD930-VFD |
|---|---|---|
| Processing Capacity | ≤ 40 m³/h | ≤ 40 m³/h |
| Rotational Speed | 900 rpm | 0-1200 rpm (Variable) |
| Power | 55 kW + 0.55 kW | 55 kW + 0.55 kW |
| Separation Principle | Centrifugal Separation | |
| Screen Basket Adjustment | Customizable gap sizes available | |
| Operation Control | Fixed Speed | Variable Frequency Drive |
| Additional Features | Air knives, flushing pipelines, rotor scraper system | |
Processing Principle: The cuttings dryer uses centrifugal force to separate solids and liquids. Drilling chips enter through the feed port, are dispersed by distribution plates, and enter the interior. Under centrifugal force, liquid and small solid particles pass through the screen basket, while larger solids are retained and scraped off by rotor scrapers for discharge.
Cuttings Dryer Detailed Overview
The drill chip spin dryer utilizes the principle of centrifugal separation to efficiently separate solids and liquids from drilling cuttings. Based on customer requirements for particle size separation, different gap sieve baskets can be selected for optimal performance.
Processing Workflow: Drilling chips enter through the feeding port, are dispersed by distribution plates, and enter the interior of the cuttings dryer. Under centrifugal force, liquid phase and solid particles smaller than the sieve basket gap flow through into the outlet ring and are discharged. Larger solids are scraped off by rotor scrapers and pushed to the discharge point.
Equipment Features and Advantages
Design and Performance:
- Compact Design: Space-efficient construction suitable for various installation environments
- Efficient Operation: High processing capacity with minimal energy consumption
- Stable and Reliable Performance: Consistent operation with minimal maintenance requirements
- User-Friendly: Easy to operate and maintain with accessible components
Quality Components:
- Premium Power System: High-quality brand power components for reliable operation
- Customizable Configuration: Flexible design to meet specific user requirements and operating conditions
- Advanced Control Systems: Optional variable frequency drive for precise speed control
Separation Technology:
- Centrifugal Force Separation: Utilizes centrifugal force for efficient solid-liquid separation
- Adjustable Screen Baskets: Customizable gap sizes for specific particle size requirements
- Scraper System: Rotor scrapers with speed differential ensure continuous discharge of solids
- Cleaning Systems: Air knives and flushing pipelines maintain screen basket efficiency
The drilling chip processing process follows these stages:
- Feeding: Drilling chips enter through the feeding port and are dispersed by distribution plates
- Centrifugal Separation: Material enters the interior where centrifugal force separates components
- Liquid Discharge: Liquid and small solids pass through screen basket gaps into outlet rings
- Solid Discharge: Larger solids are scraped by rotor scrapers and pushed to discharge points
- Cleaning: Air knives and flushing pipelines ensure continuous operation
AIPU provides flexible configurations for international markets based on actual user needs. Customization options include:
- Electrical System Customization: Tailored control systems for specific operational requirements

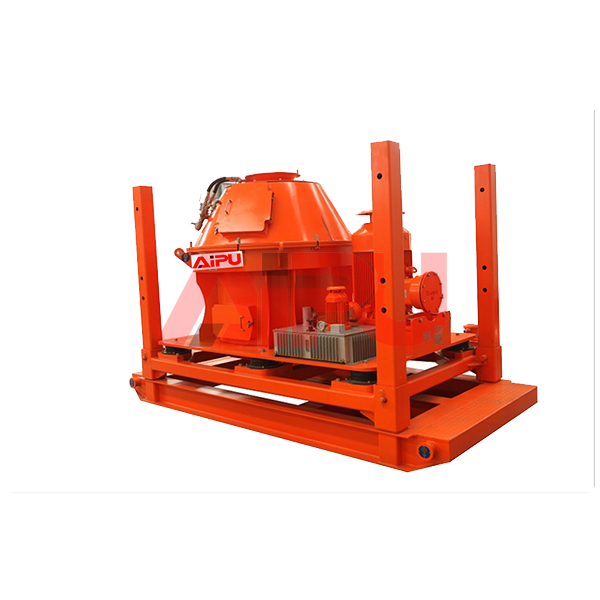

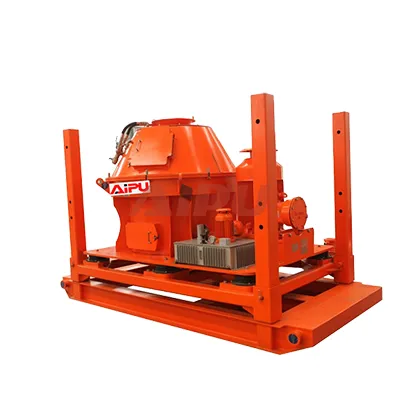

- Containerization Options: Equipment can be containerized for easy transport and installation
- Surface Coating Colors: Custom color options to match existing equipment or branding
- Screen Basket Specifications: Various gap sizes for different particle separation requirements
Technical Advantage: The variable frequency drive (VFD) option (APVCD930-VFD model) allows for rotational speed adjustment from 0-1200 rpm, providing precise control over separation efficiency based on specific material characteristics and processing requirements.
Application Scenarios
Versatile applications across drilling and industrial operations
Oil & Gas Drilling
Processing drilling cuttings from onshore and offshore drilling operations with efficient solid-liquid separation.
Waste Management
Separating solids from drilling waste streams for disposal or further processing and recycling.
Industrial Processing
Handling industrial slurries and waste streams requiring solid-liquid separation.
Environmental Remediation
Processing contaminated soils and sediments in environmental cleanup projects.
Fluid Recovery
Recovering drilling fluids and other process liquids for reuse in operations.
Material Processing
Separating solids from various industrial process streams for quality control.
Why Choose Our Cuttings Dryer
Industry-leading advantages for efficient drilling cuttings processing
Precise Particle Separation
Adjustable screen baskets allow for customizable gap sizes to meet specific particle separation requirements with high precision.
High Processing Capacity
Processes up to 40 m³/h of drilling cuttings with efficient centrifugal separation technology and minimal energy consumption.
Continuous Operation
Equipped with air knives and flushing pipelines to ensure uninterrupted operation and prevent screen basket clogging.
Compact and Reliable Design
Space-efficient construction with stable performance and easy maintenance access for industrial applications.
Variable Speed Control
Optional VFD model allows precise rotational speed adjustment from 0-1200 rpm for optimal separation efficiency.
Easy Customization
Flexible configuration options including electrical systems, containerization, and surface coatings to meet specific requirements.
Customer Testimonials
What our clients say about our cuttings dryer solutions
We've been using the APVCD930 cuttings dryer for over 18 months in our offshore operations. The adjustable screen baskets allow us to optimize separation for different drilling conditions, and the maintenance has been minimal.
The compact design fits perfectly in our limited space on the drilling platform. The 40 m³/h capacity handles our peak drilling periods without issues, and the recovered drilling fluid has significantly reduced our operating costs.
AIPU's VFD model gives us precise control over separation efficiency. We can adjust the speed based on the specific cuttings characteristics, which has improved our overall processing efficiency by approximately 30%.
