ELECTRONIC IGNITION DEVICE
Professional electronic ignition devices for oil drilling systems and gas treatment facilities. Safe combustion of vented and waste gases with remote control operation, ensuring environmental compliance and operational safety.
Inquire NowProduct Showcase
Discover the advanced features and specifications of our professional electronic ignition devices
Key Features
The APFI series electronic ignition combustion device ignites and burns released flammable and harmful gases to eliminate environmental and safety hazards. Widely used in petroleum drilling engineering with gas separators.
Marine Anti-Corrosion Coating
Sprayed with marine heavy-duty anti-corrosion paint for long-term durability in harsh environments.
Stainless Steel Torch Head
High-quality stainless steel torch head ensures reliable performance and extended service life.
Remote Electronic Ignition
Advanced remote electronic ignition control with dual safety ignition system for secure operation.
Anti-Backfire Design
Unique anti-backfire device design prevents dangerous backfire incidents and ensures safety.
Technical Specifications
Detailed specifications for the APFI Series Electronic Ignition Devices
| Model Number | APVFIL8 | APVFI08 | APHFIL4 | APHFIO6 |
|---|---|---|---|---|
| Form | Vertical | Horizontal | ||
| Combustion Source | Natural Gas | Diesel Fuel | Natural Gas | Diesel Fuel |
| Main Body Diameter | DN200/8" | DN200/8" | DN100/4" | DN150/6" |
| Torch Head Diameter | DN500/20" | 500mm | 500mm | 600mm |
| Control Method | Remote Control & Wired Control | |||
| Burner Height | 2500-3000mm | |||
| Ignition Voltage | 16kV | |||
| Ignition Frequency | 100-1000 times/min | |||
| Charging Voltage | 220V/50HZ | |||
Configuration Options
Electronic Ignition Device Detailed Overview
The APFI series electronic ignition device is an advanced electronic ignition system specifically designed for integration with petroleum drilling systems. It serves as a critical treatment device for tail gases and vented natural gas at refineries and natural gas gathering stations (GOSP), providing safe and environmentally compliant combustion of flammable and harmful gases.
Primary Function: The APFI series electronic ignition combustion device ignites and burns released flammable and harmful gases, effectively eliminating their environmental impact and safety hazards. This equipment represents a safe and environmentally friendly solution for gas treatment in industrial applications.
Application and Effects
The APFI series electronic ignition combustion device designed and manufactured by AIPU provides reliable ignition and combustion of vented flammable gases, effectively eliminating their potential harm to both environmental conditions and operational safety. As essential safety and environmental protection equipment, these devices find widespread application in petroleum drilling engineering, particularly when used in conjunction with drilling fluid gas separators.
Quality Assurance: Our electronic ignition devices incorporate imported main components combined with high-quality domestic parts and cables. This balanced approach ensures optimal performance while maintaining cost-effectiveness. Years of field application have demonstrated their stable and reliable performance under demanding operational conditions.
Equipment Features and Advantages
Durable Construction: All units receive professional marine heavy-duty anti-corrosion paint applications, providing exceptional resistance to harsh environmental conditions commonly encountered in oil and gas operations.

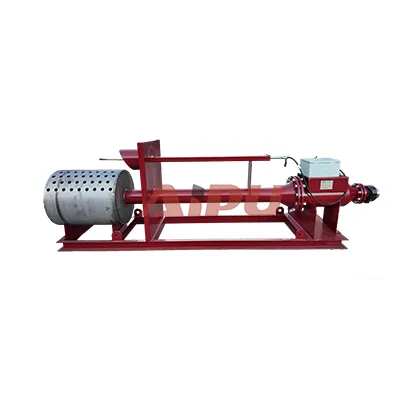

Premium Materials: The system features stainless steel torch heads that offer superior corrosion resistance and extended service life compared to conventional materials.

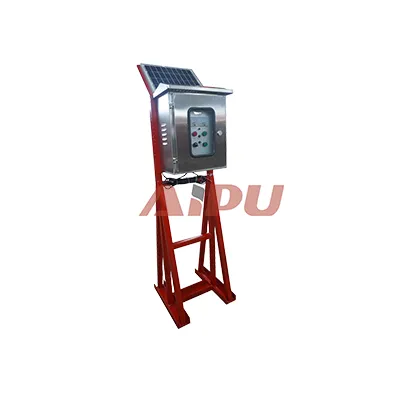

Advanced Control Systems: Our devices incorporate remote electronic ignition control systems with comprehensive safety features, including remote manual ignition boxes equipped with dual safety ignition mechanisms for maximum operational security.
Flexible Installation: Installation forms can be customized to specific site requirements, including both vertical and horizontal configurations to accommodate various space constraints and operational needs.
Fuel Flexibility: Systems are available with multiple fuel options including diesel and natural gas, allowing selection based on availability, cost considerations, and specific operational requirements.

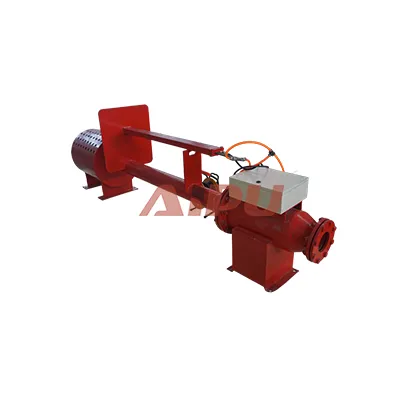

Enhanced Safety: The unique anti-backfire device design prevents dangerous backfire incidents, ensuring safe operation even under variable gas flow conditions.
Extended Service Life: Careful component selection and robust construction result in significantly longer service life compared to conventional ignition systems, reducing maintenance requirements and total cost of ownership.
Technical Specifications Overview
The APFI series includes multiple models designed for different applications:
- APVFIL8 & APVFI08: Vertical installation models with DN200/8" main body diameter, available with natural gas or diesel fuel options

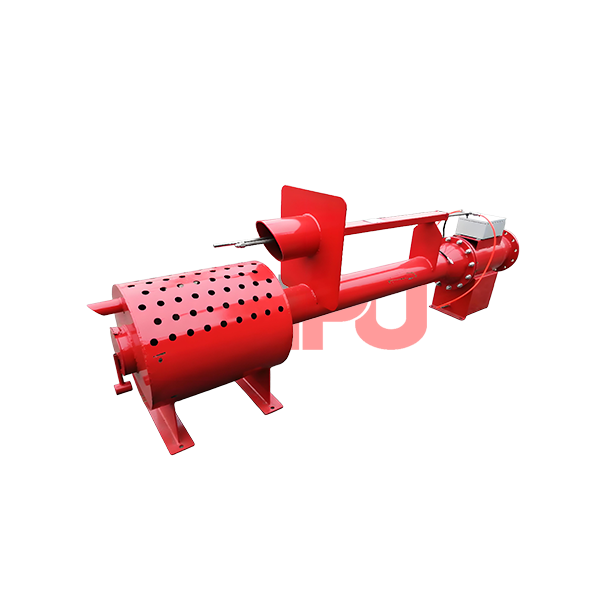

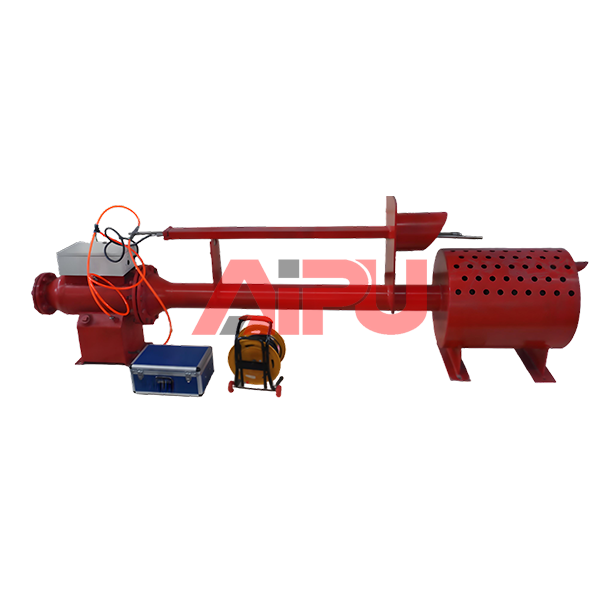

- APHFIL4 & APHFIO6: Horizontal installation models with DN100/4" and DN150/6" main body diameters respectively
- Control Systems: All models feature both remote control and wired control options for operational flexibility
- Performance Specifications: Standard burner height of 2500-3000mm with 16kV ignition voltage and 100-1000 times/min ignition frequency
- Power Requirements: Standard 220V/50HZ charging voltage compatible with typical industrial power systems
The AIPU APFI Series Electronic Ignition Device represents engineering excellence in gas combustion technology, combining safety, reliability, and environmental compliance in a comprehensive package designed for the most demanding industrial applications.
Application Scenarios
Critical applications for safe gas combustion and environmental protection
Petroleum Drilling Systems
Essential component for oil drilling operations, particularly when used with drilling fluid gas separators for safe gas disposal.
Refinery Operations
Treatment of tail gases and vented natural gas at refineries to ensure environmental compliance and safe operations.
Gas Gathering Stations
Critical safety equipment at natural gas gathering stations (GOSP) for controlled combustion of vented gases.
Waste Gas Treatment
Safe combustion of flammable and harmful waste gases to eliminate environmental impact and safety hazards.
Safety Systems
Integrated safety systems for industrial facilities requiring controlled combustion of vented or emergency gas releases.
Environmental Protection
Environmental compliance equipment for controlled combustion of gases to meet regulatory requirements and reduce emissions.
Why Choose AIPU Electronic Ignition Device
Industry-leading safety and performance advantages
Enhanced Safety
Unique anti-backfire design and dual safety ignition systems prevent dangerous incidents and ensure secure operation even under variable gas flow conditions.
Environmental Compliance
Safe combustion of flammable and harmful gases eliminates environmental impact and helps facilities meet strict regulatory requirements for emissions control.
Remote Operation
Advanced remote electronic ignition control allows operators to maintain safe distances while ensuring reliable ignition and combustion control.
Durable Construction
Marine heavy-duty anti-corrosion paint and stainless steel components ensure long-term durability in harsh industrial environments.
Flexible Configuration
Multiple installation forms (vertical/horizontal) and fuel options (diesel/natural gas) allow customization to specific site requirements and operational needs.
Proven Reliability
Years of field application with imported main components and high-quality domestic parts have demonstrated stable and reliable performance in demanding conditions.
Customer Testimonials
What our clients say about AIPU Electronic Ignition Devices
The APFI series ignition device has been operating flawlessly at our refinery for over two years. The remote control functionality allows our operators to maintain safe distances, and the anti-backfire design has prevented several potential incidents.
We installed the APVFIL8 model at our gas gathering station, and it has exceeded all expectations. The stainless steel construction has withstood harsh desert conditions, and the dual safety ignition system gives us complete confidence in operations.
The flexibility to choose between vertical and horizontal installation was crucial for our space-constrained offshore platform. AIPU's electronic ignition device has provided reliable performance with minimal maintenance for 18 months.
Need Professional Electronic Ignition Solutions?
Contact our experts for customized equipment and safety recommendations tailored to your gas treatment requirements
