MOBILE JET HOPPER
Professional Venturi-based mobile mixing equipment for drilling fluids. Features easy installation, superior mixing efficiency, 150-200m³/h processing capacity, and robust construction.
info@aipusolidcontrol.comProduct Showcase
Discover the advanced features and specifications of our high-performance mobile jet hopper
Key Features

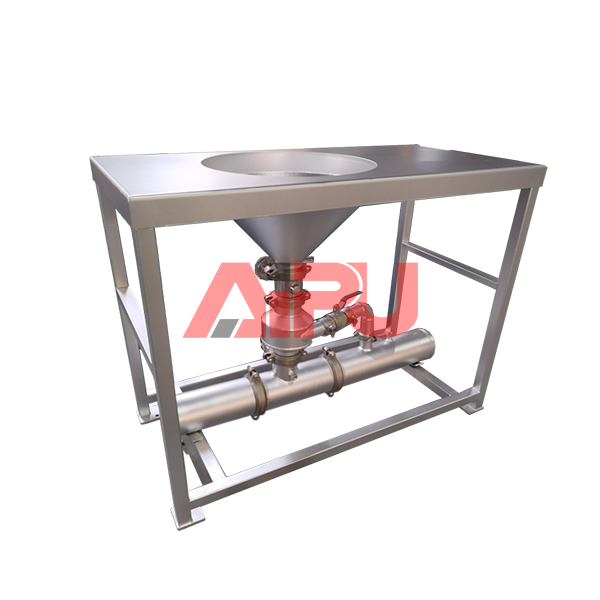

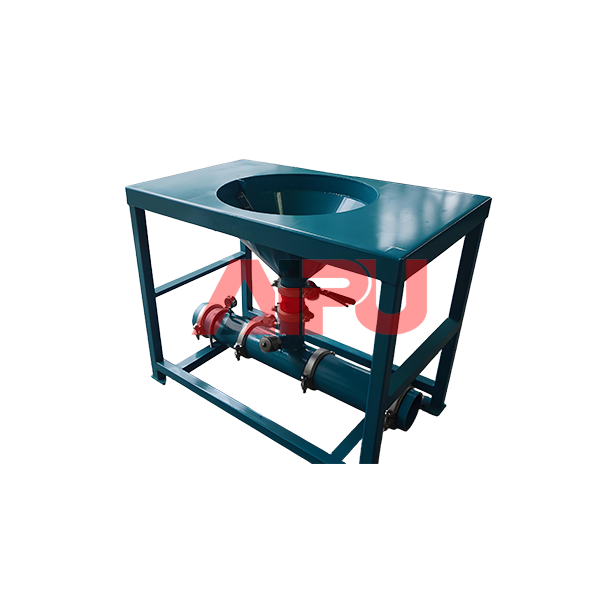

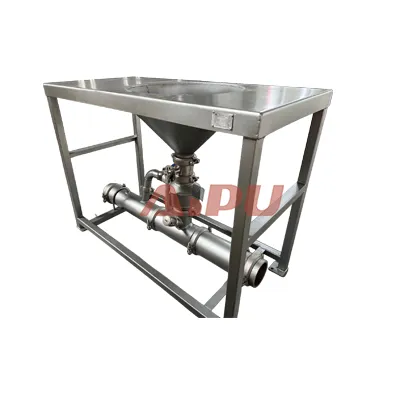

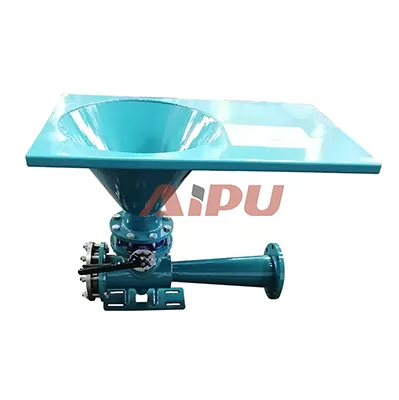

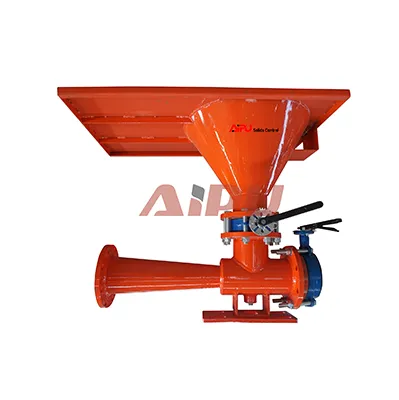

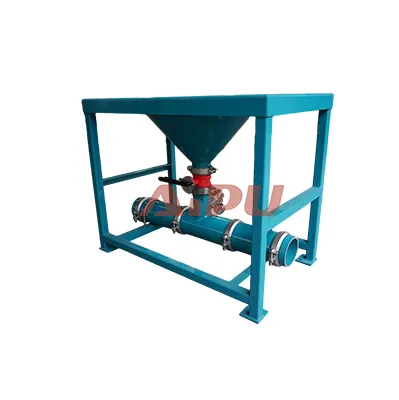

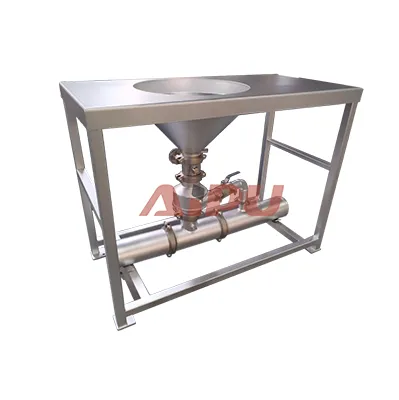

The mobile jet hopper is engineered based on Venturi principles and comprises a mixing funnel, butterfly valves, Venturi components, and base. It offers easy installation, superior mixing efficiency, strong climbing performance, and comprehensive functionality.
Venturi Principle Design
Engineered based on Venturi principles for efficient fluid mixing and superior performance.
Mobile & Easy Installation
Mobile design with easy installation and use, featuring strong climbing performance.
High Processing Capacity
150-200m³/h flow capacity with clay: 180kg/min and barite: 315kg/min processing rates.
Robust Construction
Built with durable materials including carbon steel or hydrogen sulfide resistant steel options.
Technical Specifications
Detailed specifications for the AIPU Mobile Jet Hopper
| Parameter | Specification |
|---|---|
| Input Pressure | 0.22～0.4 MPa |
| Three-Way Caliber | 6" (DN150) |
| Flow Capacity | 150-200 m³/h |
| Processing Capacity (Clay) | 180 kg/min |
| Processing Capacity (Barite) | 315 kg/min |
| External Dimensions | 1545 × 752 × 1165 mm |
Equipment Features & Advantages
Design Features
- Based on Venturi principle for efficient mixing
- Comprises mixing funnel, butterfly valves, Venturi components, and base
- Mobile design for easy relocation and installation
- Strong climbing performance for various applications
Operational Advantages
- Easy installation and use with minimal setup time
- Superior mixing efficiency for consistent results
- Comprehensive functionality for various mixing needs
- Quick flushing system for easy cleaning
Mobile Jet Hopper Detailed Overview
The mobile jet hopper is designed and manufactured based on the Venturi principle. It is mainly composed of a mixing funnel, butterfly valve, Venturi component, and base. It has the characteristics of easy installation and use, good mixing effect, strong climbing performance, and comprehensive functions.
Primary Application: When preparing drilling fluid, the mobile jet hopper is used for efficient mixing of clay, barite, and other drilling fluid additives with 150-200m³/h processing capacity.
Applications & Operation
The mobile jet hopper is widely used in:
- Drilling fluid preparation and conditioning
- Clay and barite mixing operations
- Mobile drilling operations requiring portable equipment
- Temporary drilling sites and remote locations
- Emergency drilling fluid preparation
Operation Procedure:
- Open the suction butterfly valve of the weighting pump and the butterfly valve of the supply pipeline
- Close the butterfly valve on the mixing funnel and wait for liquid circulation
- Open the butterfly valve under the mixing funnel when pressure gauge shows negative pressure
- Control feeding speed to not exceed required mixing processing capacity
- After completion, connect external water source hose to quick flushing joint for cleaning
AIPU Mobile Jet Hopper Technical Features
- Venturi principle design for efficient fluid mixing
- Mobile construction with easy relocation capability
- Butterfly valves for precise flow control
- Quick flushing system for easy cleaning and maintenance
- Durable base construction for stability during operation
- Comprehensive functionality for various mixing applications
- Strong climbing performance for challenging installations
- Easy installation with minimal setup time required
- Compact design for space-efficient operation
Customization Options
Tailored for specific requirements, AIPU offers flexible configurations:
- Material options: Carbon steel or hydrogen sulfide resistant steel
- Valve options: Various butterfly valve configurations
- Mounting options: Different base designs for specific installations
- Accessory packages: Complete kits including hoses and fittings
- Surface finishing: Custom coating colors and corrosion protection
- Capacity variations: Modified designs for specific flow requirements
The AIPU Mobile Jet Hopper is engineered for reliable performance in various drilling environments. Its mobile design allows for easy transportation between sites, while the Venturi-based mixing system ensures efficient and consistent fluid preparation.
Application Scenarios
Versatile applications across various drilling and mixing operations
Drilling Fluid Preparation
Efficient mixing of drilling fluid additives including clay and barite for optimal fluid properties.
Mobile Drilling Operations
Ideal for temporary drilling sites and remote locations requiring portable mixing equipment.
Mud Weighting Operations
Precise mixing of weighting materials to achieve desired mud density for drilling operations.
Emergency Fluid Preparation
Quick deployment for emergency drilling fluid preparation in urgent situations.
Temporary Mixing Stations
Perfect for temporary mixing stations during drilling operations and well servicing.
Fluid Conditioning
Effective conditioning of drilling fluids to maintain optimal performance characteristics.
Why Choose AIPU Mobile Jet Hopper
Industry-leading benefits for your drilling fluid operations
Mobile & Portable Design
Easy to transport and install at various drilling sites with minimal setup time required.
Efficient Venturi Mixing
Venturi principle design ensures efficient mixing with superior results and consistent fluid properties.
High Processing Capacity
150-200m³/h flow capacity with 180kg/min clay and 315kg/min barite processing rates.
Easy Operation & Maintenance
Simple operation procedures and quick flushing system for easy cleaning and maintenance.
Durable Construction
Built with robust materials including carbon steel or hydrogen sulfide resistant steel options.
Versatile Applications
Suitable for various drilling operations including temporary sites and emergency situations.
Customer Testimonials
What our clients say about AIPU Mobile Jet Hoppers
The mobile jet hopper has been a game-changer for our remote drilling operations. Its portability and efficient mixing have significantly reduced our setup time and improved fluid consistency.
We've used the AIPU Mobile Jet Hopper on multiple temporary drilling sites. The Venturi mixing principle ensures excellent fluid homogenization, and the mobile design makes relocation between sites effortless.
The quick flushing system and easy maintenance of the AIPU Mobile Jet Hopper have saved us significant downtime. The equipment is reliable and performs consistently in challenging conditions.
Need Professional Mobile Mixing Solutions?
Contact our experts for customized equipment and system recommendations tailored to your drilling fluid requirements
