MUD COOLING SYSTEM
Professional drilling fluid temperature control solution for deep wells, high-temperature wells, and geothermal drilling operations. Protect downhole equipment with effective mud cooling.
info@aipusolidcontrol.comProduct Showcase
Advanced mud cooling systems for high-temperature drilling operations and equipment protection
Key Features
Our mud cooling system addresses downhole equipment protection in high-temperature wells through continuous circulation. Reduces mud temperature by 20-30°C to maintain optimal drilling conditions.
Effective Cooling
Reduces mud temperature by 20-30°C to protect downhole equipment and instruments.

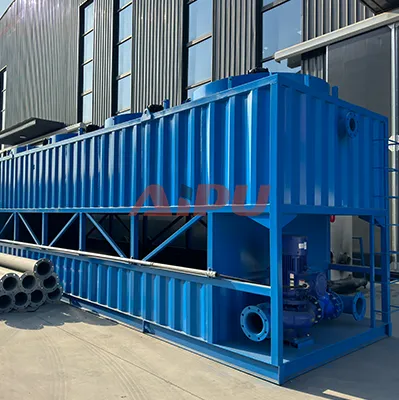

Compact Design
Space-optimized layout with small footprint for drilling platform installation.
High Efficiency
Large heat exchange area provides significant cooling effect with minimal energy.
Durable Materials
Oil-resistant and corrosion-resistant materials ensure long service life.
Technical Specifications
Detailed specifications for AIPU mud cooling system models
| Model Number | Processing Capacity (m³/h) | Cooling Amplitude (°C) | Power Consumption (kW) | Heat Exchange Area (m²) | Dimensions (L×W×H) |
|---|---|---|---|---|---|
| APLQ120 | 120 | 20-30 | 172 | 85 | 6.5×2.8×3.2m |
| APLQ200 | 200 | 20-30 | 338 | 140 | 8.2×3.5×3.8m |
| APLQ300 | 300 | 20-30 | 450 | 210 | 10.5×4.2×4.5m |
| APLQ400 | 400 | 20-30 | 560 | 280 | 12.8×4.8×5.2m |
| APLQ500 | 500 | 20-30 | 680 | 350 | 14.5×5.2×5.8m |
| APLQ-Mobile | 80-100 | 15-25 | 120 | 60 | Trailer Mounted |
Configuration Options
Mud Cooling System Detailed Overview
In today's challenging drilling environments, particularly in deep wells, high-temperature wells, directional wells, and geothermal wells, excessive mud temperatures pose significant risks to downhole equipment and instrumentation. Our advanced mud cooling system provides an ideal solution for maintaining optimal drilling fluid temperatures through continuous circulation cooling.
Primary Application: Addressing downhole equipment protection in high-temperature wells through continuous circulation. The system effectively cools drilling mud to prevent instrument and equipment failure caused by excessive heat, ensuring normal operation of downhole equipment on drilling platforms.
Cooling Process and Operation
Hot Mud Inlet
High-temperature drilling mud from the wellbore enters the cooling system through the inlet manifold.

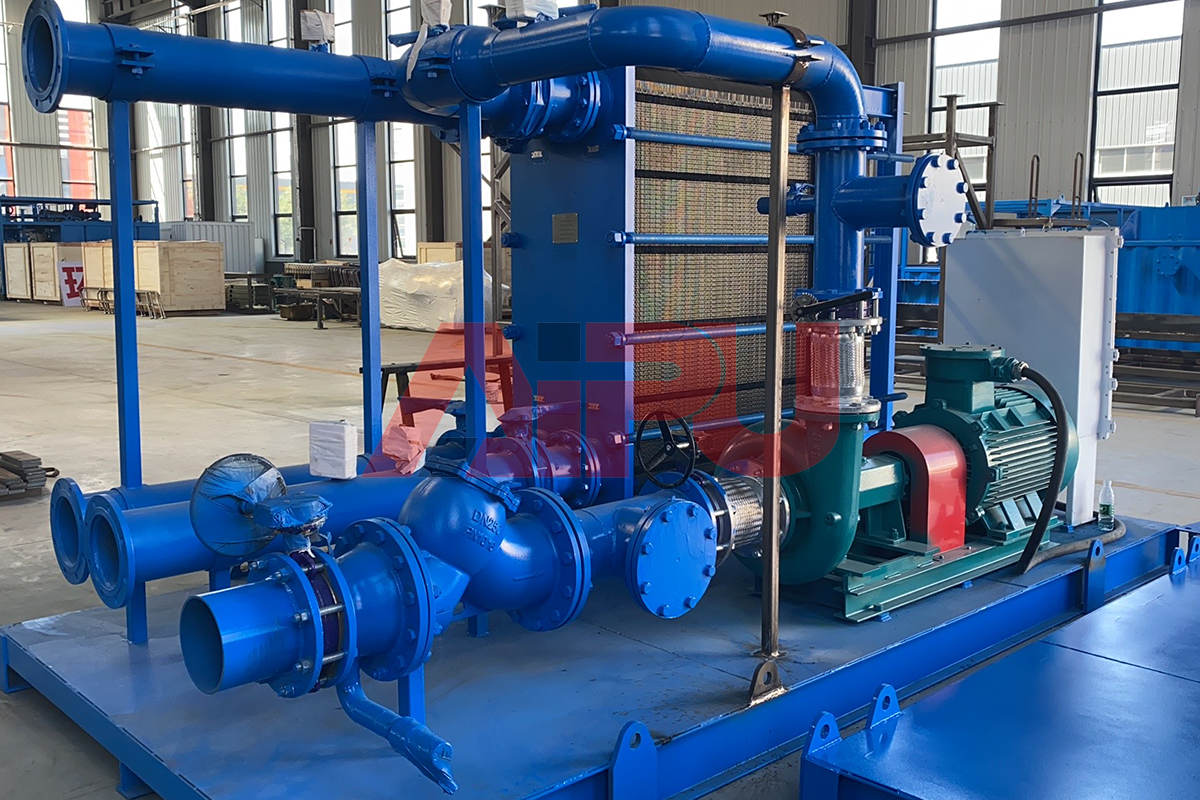

Heat Exchange
Mud passes through high-efficiency heat exchangers where heat is transferred to cooling media.
Temperature Reduction
Mud temperature is reduced by 20-30°C through controlled cooling processes.
Cooled Mud Return
Cooled mud is returned to the wellbore or mud system at optimal operating temperatures.
Application and Performance Benefits
The AIPU Mud Cooling System delivers significant operational advantages in challenging drilling environments:
- Rapid Mud Cooling: Achieves fast temperature reduction to protect sensitive downhole equipment
- Temperature Stability: Maintains mud within optimal temperature ranges for consistent drilling performance
- Equipment Protection: Reduces failure rates of MWD/LWD tools, motors, and other downhole instruments
- Operational Efficiency: Enables continuous drilling in high-temperature formations without equipment limitations
- Cost Reduction: Minimizes equipment replacement costs and downtime associated with heat-related failures
Performance Specifications:
- Temperature reduction capability: 20-30°C cooling amplitude
- Processing capacity: 120-500 m³/h depending on model selection
- Continuous operation capability for extended drilling periods
- Compatible with both water-based and oil-based drilling fluids
- Adaptable to various well depths and temperature conditions
Equipment Features and Advantages
- Optimized Design: Compact footprint with efficient space utilization for installation on drilling platforms
- High Cooling Efficiency: Large heat exchange surface area ensures significant cooling effect with minimal energy consumption
- Durable Construction: Oil-resistant and corrosion-resistant materials selected for longevity in harsh drilling environments
- Flexible Control: Capable of local operation or remote monitoring and control based on operational requirements
- Energy Efficient: Optimized design minimizes power consumption while maximizing cooling performance
- Easy Maintenance: Accessible components and modular design simplify maintenance procedures
- Reliable Operation: Robust construction and quality components ensure continuous operation in demanding conditions
- Safety Features: Comprehensive safety systems including temperature alarms and pressure relief valves
Customization and International Standards
AIPU provides comprehensive customization options to meet diverse international requirements:
- Material Selection: Options include standard carbon steel or specialized H2S resistant steel for sour service applications
- Electrical Systems: Custom electrical configurations to meet specific regional standards and voltage requirements
- International Certifications: Available certifications include ATEX (explosive atmospheres), IEC standards, UL certification, and DGMS compliance
- Surface Finishing: Custom coating colors and surface treatments to match customer specifications or corporate branding
- Control Systems: Options ranging from basic local controls to advanced PLC automation with remote monitoring capabilities
- Deployment Options: Stationary installations or mobile/trailer-mounted units for flexible deployment
- Integration Services: Seamless integration with existing mud systems and drilling equipment
Technical Support and Service
Our commitment to customer success extends beyond equipment delivery:
- Engineering Support: Technical consultation for system sizing and configuration based on specific well conditions
- Installation Supervision: On-site support during installation and commissioning
- Operator Training: Comprehensive training for operation, maintenance, and troubleshooting
- Spare Parts: Readily available spare parts and consumables to minimize downtime
- Technical Documentation: Complete operating manuals, maintenance guides, and technical specifications
- Remote Support: Ongoing technical support through remote monitoring and consultation
The AIPU Mud Cooling System represents advanced engineering specifically designed for the challenges of modern drilling operations. By effectively controlling drilling fluid temperatures, our systems protect valuable downhole equipment, enhance operational safety, and improve overall drilling efficiency in high-temperature environments.
Application Scenarios
Specialized cooling solutions for diverse drilling environments
Deep Well Drilling
Essential for deep well operations where increasing depth results in elevated downhole temperatures.
High-Temperature Wells
Critical for wells with naturally high formation temperatures or thermal recovery operations.
Geothermal Drilling
Specialized cooling for geothermal wells where extreme temperatures challenge conventional equipment.
Directional Drilling
Protects sensitive measurement-while-drilling (MWD) tools in extended reach and horizontal wells.
Offshore Platforms
Compact designs optimized for space-constrained offshore drilling platforms and rigs.
Thermal Recovery
Cools drilling fluids in steam-assisted gravity drainage (SAGD) and thermal recovery operations.
Why Choose AIPU Mud Cooling System
Industry-leading benefits for high-temperature drilling operations
Equipment Protection
Significantly reduces failure rates of downhole tools and instruments by maintaining optimal operating temperatures.
Operational Continuity
Enables continuous drilling in high-temperature formations without equipment-related downtime.
Cost Efficiency
Reduces equipment replacement costs and extends the service life of expensive downhole tools.
Enhanced Safety
Maintains safe operating conditions by preventing overheating of drilling fluids and equipment.
Flexible Control
Local and remote control options provide operational flexibility and real-time temperature management.
International Compliance
Designed to meet international standards including ATEX, IEC, UL, and DGMS requirements.
Customer Testimonials
What our clients say about AIPU Mud Cooling Systems
We installed the APLQ200 system on our deep well drilling project in the Middle East. The system consistently reduced mud temperatures by 25-28°C, which dramatically decreased our MWD tool failure rate. The compact design was perfect for our space-limited drilling platform.
Our geothermal drilling project in Indonesia faced extreme temperature challenges. The AIPU mud cooling system allowed us to continue operations without constant equipment failures. The remote monitoring capability gave our engineers real-time temperature control from the control room.
As an equipment specialist, I've worked with several cooling systems. AIPU's solution stands out for its reliability and efficiency. The H2S resistant steel option was crucial for our sour gas wells, and the system has performed flawlessly for over 18 months of continuous operation.
Need Professional Mud Cooling Solutions?
Contact our drilling fluid technology experts for customized cooling systems tailored to your high-temperature drilling requirements
