OIL-BASED MUD ZERO-DISCHARGE SYSTEM
Complete environmental solution for oil-based drilling mud treatment and recycling. Enables 95%+ mud recovery, reduces land use by 80%, and eliminates environmental risk at drilling sites.
info@aipusolidcontrol.comProduct Showcase
Discover the advanced features and capabilities of our complete zero-discharge system for oil-based drilling mud
Key Features
The AIPU Oil-Based Mud Zero-Discharge System provides complete environmental protection by treating drilling waste through drying, separation, and solidification processes. Our system enables 95%+ mud recovery and eliminates the need for traditional mud pits.
Advanced Drying Technology
Drill cuttings dryer achieves OOC ≤ 5% using advanced foreign technology for maximum oil recovery.
Premium Component Quality
High-speed centrifuge uses SKF and FAG imported bearings with SOG imported oil seals for reliability.
PLC Intelligent Control
Automated control system with real-time monitoring and adjustment for optimal process efficiency.
Modular Flexible Design
Integrated modular design with low transportation costs and excellent processing performance.
System Process Overview
Complete workflow for oil-based drilling mud treatment and recycling
| Process Step | Equipment | Function | Output Quality | Recovery Rate |
|---|---|---|---|---|

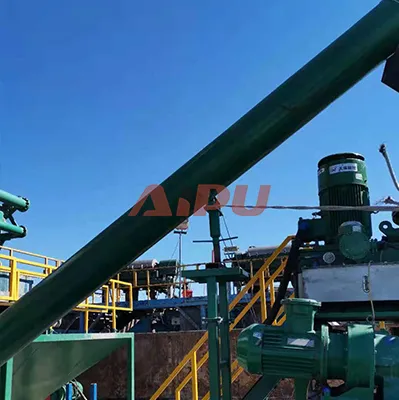

| 1. Cuttings Collection | Screw Conveyor System | Transport drill cuttings from shale shaker | Continuous flow | 100% collection |

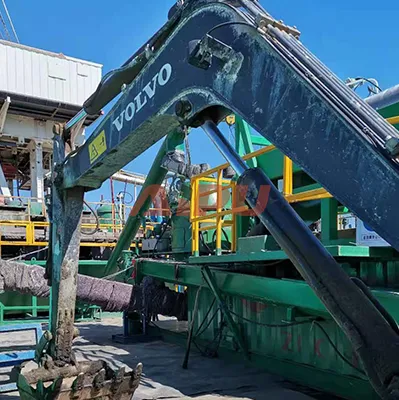

| 2. Drying Process | Drill Cuttings Dryer | Separate oil from solid cuttings | OOC ≤ 5% | 95% oil recovery |

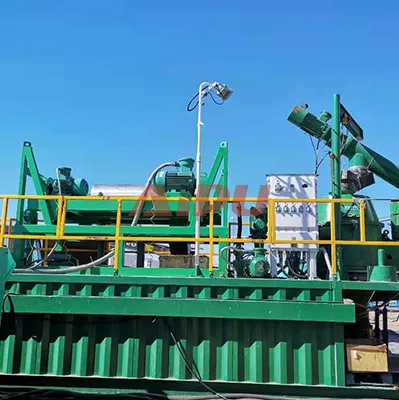

| 3. Liquid Phase Treatment | High-Speed Centrifuge | Mud-water separation | Clean drilling fluid | 98% fluid recovery |
| 4. Solidification | Chemical Mixing System | Stabilize waste solids | Non-hazardous solid | Complete treatment |
| 5. Control & Monitoring | PLC Control System | Automated process control | Optimal operation | Maximum efficiency |
System Components
Oil-Based Mud Zero-Discharge System Detailed Overview
The AIPU Oil-Based Mud Zero-Discharge System provides a complete environmental solution for drilling operations using oil-based mud. The system processes drill cuttings through a comprehensive treatment chain that includes drying, separation, and solidification, enabling maximum resource recovery and minimal environmental impact.
System Process: Drill cuttings from the conventional solids control system are transported via screw conveyor to the drill cuttings dryer for treatment. After drying, the solid phase is collected while the separated liquid phase enters storage tanks. From there, it's pumped to high-speed variable frequency centrifuges for mud-water separation. The treated solids are collected for solidification, while the cleaned drilling fluid is recycled for reuse.
Application and Environmental Benefits
The AIPU Zero-Discharge System delivers significant advantages for drilling operations and environmental protection:
- Reduced Land Use: Eliminates the need for traditional mud pits, reducing land requirements by up to 80% compared to conventional disposal methods.
- Lower Operational Costs: Significantly reduces workload for drilling teams and lowers associated operational expenses through efficient waste management.
- Environmental Risk Reduction: Enables reduction, resource utilization, and harmless treatment of solid waste, minimizing environmental risks at well sites.
- Economic Efficiency: Integrated modular design with low transportation costs and excellent processing performance delivers strong economic returns.
- Sustainable Operations: Provides both social and economic benefits while supporting sustainable drilling practices and regulatory compliance.
System Features and Technical Advantages
Our zero-discharge system incorporates advanced technology and premium components for reliable, efficient operation:
- Advanced Drying Technology: The drill cuttings dryer utilizes advanced international technology to achieve Oil on Cuttings (OOC) levels of ≤ 5%, maximizing oil recovery and minimizing waste.
- Premium Component Selection: High-speed variable frequency centrifuges are equipped with imported SKF and FAG bearings and SOG oil seals for exceptional reliability and longevity.
- Intelligent Control System: PLC-based control system enables automated operation, real-time monitoring, and optimal process adjustment for maximum efficiency.
- Efficient Solidification: Chemical solidification system uses minimal additives while achieving excellent solidification results for safe disposal or potential reuse.
- Self-Cleaning Design: Mud tanks feature self-cleaning capabilities to maintain system efficiency and reduce maintenance requirements.

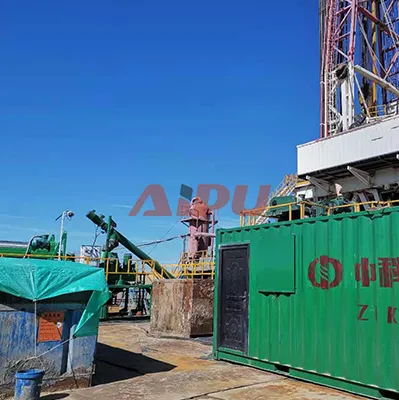

- Modular Construction: Flexible modular design allows for easy transportation, quick installation, and configuration flexibility based on site requirements.
- Reliable Connections: System components are connected using convex ear butterfly valves for secure, leak-free operation.
Operational Benefits
The AIPU Zero-Discharge System transforms drilling waste management from a cost center to an efficiency opportunity:
- Resource Recovery: Enables recovery of 95%+ of drilling fluid for reuse, significantly reducing mud costs and freshwater consumption.
- Regulatory Compliance: Helps operations meet stringent environmental regulations for drilling waste management and disposal.
- Operational Flexibility: Suitable for various drilling environments including onshore, offshore, and remote locations.
- Reduced Liability: Minimizes environmental liability and associated risks through complete waste treatment.
- Improved Site Management: Reduces footprint and cleanup requirements at drilling sites, supporting faster site restoration.
This comprehensive system represents AIPU's commitment to environmental stewardship and operational efficiency in the drilling industry. By integrating advanced technology with practical engineering, we provide solutions that benefit both our clients and the environment.
Application Scenarios
Versatile applications across various drilling operations and environments
Onshore Drilling Operations
Complete waste management for land-based drilling operations using oil-based mud systems, especially in environmentally sensitive areas.
Offshore Platforms
Space-efficient zero-discharge solutions for offshore drilling platforms where traditional waste disposal options are limited.
Remote & Arctic Operations
Environmental protection solutions for drilling in remote, sensitive, or arctic environments where waste transportation is challenging.
Urban & Sensitive Areas
Low-footprint systems for drilling operations near urban areas, protected lands, or other environmentally sensitive locations.
Mud Recycling Facilities
Centralized treatment facilities for processing drilling waste from multiple operations and maximizing resource recovery.
Regulatory Compliance Projects
Solutions for operations requiring strict compliance with environmental regulations for drilling waste management.
Why Choose AIPU Zero-Discharge System
Comprehensive benefits for environmental protection and operational efficiency
Maximum Resource Recovery
Recovers 95%+ of drilling fluid for reuse, significantly reducing mud costs and minimizing freshwater consumption in operations.
Environmental Compliance
Enables full compliance with stringent environmental regulations for drilling waste management and disposal requirements.
Reduced Operational Costs
Lowers drilling team workload, reduces mud consumption, and minimizes waste disposal expenses through efficient processing.
Premium Component Quality
Utilizes imported SKF/FAG bearings and SOG oil seals in centrifuges for exceptional reliability and reduced maintenance requirements.
Advanced Technology Integration
Incorporates advanced drying technology achieving OOC ≤ 5% and PLC intelligent control for optimal process efficiency.
Flexible Modular Design
Integrated modular configuration with low transportation costs and flexible installation options for various site requirements.
Customer Testimonials
What our clients say about AIPU Zero-Discharge Systems
The AIPU zero-discharge system has transformed our drilling waste management. We've reduced our mud costs by 40% and eliminated our environmental liability. The system's reliability and the quality of recovered mud are exceptional.
Deploying the AIPU system in our Arctic operations was a game-changer. The modular design allowed for easy transport and installation, and the system performance in extreme conditions has been outstanding. Environmental compliance is now straightforward.
As an environmental consultant, I've evaluated many zero-discharge systems. AIPU's solution stands out for its technical sophistication and practical effectiveness. The OOC levels consistently below 5% and the system reliability are particularly impressive.
