SAND PUMP
Professional centrifugal sand pump for efficient transfer of slurry containing sand particles, tailings, and suspended solids. Heavy-duty design with high capacity up to 335m³/h, widely used in drilling fluid systems and dredging operations.

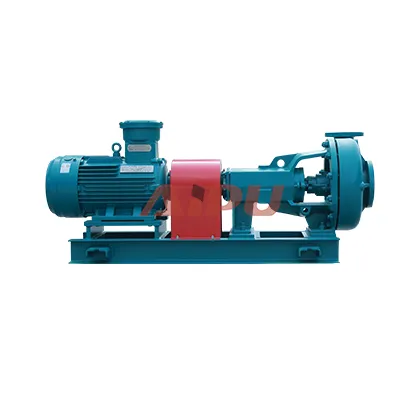

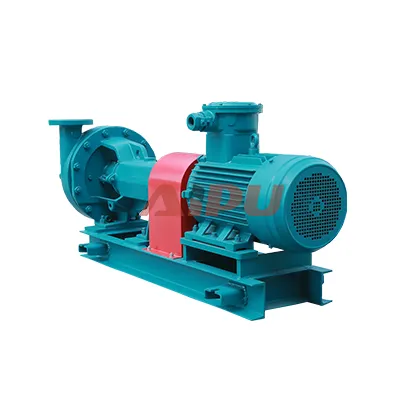

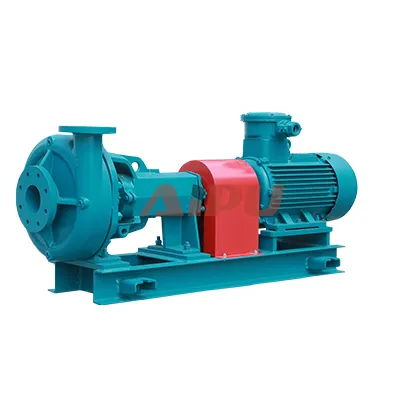

info@aipusolidcontrol.comProduct Showcase
Discover the advanced features and specifications of our high-performance sand pumps
Key Features
The AIPU centrifugal sand pump specializes in conveying slurry containing sand, tailings, and suspended solids. Features replaceable wear liners with metal or rubber options, widely used in drilling fluid systems and dredging operations.
High Capacity
Up to 335m³/h capacity with heads up to 61m for demanding operations.
Mission Magnum Compatible
Interchangeable with Mission Magnum pumps for easy replacement.
Wear Resistant
Hardened chrome carbide liners and double mechanical seal system.
High Efficiency
Up to 66% hydraulic efficiency with 1780rpm max operating speed.
Technical Specifications
Detailed specifications for the AIPU Sand Pump series (50Hz Configuration)
| Model | Capacity (m³/h) | Head (m) | Power (kW) | Speed (rpm) | Efficiency |
|---|---|---|---|---|---|
| APSB8×6-14 | 320 | 40 | 75 | 1480 | 65% |
| APSB8×6-13 | 240 | 33 | 55 | 1480 | 64% |
| APSB8×6-12 | 200 | 33 | 45 | 1480 | 64% |
| APSB6×5-13 | 180 | 34 | 45 | 1470 | 60% |
| APSB6×5-12 | 160 | 30 | 37 | 1470 | 60% |
| APSB6×5-11 | 120 | 21 | 30 | 1470 | 62% |
| APSB5×4-12 | 90 | 30 | 22 | 1460 | 56% |
| APSB4×3-13 | 50 | 40 | 15 | 1460 | 48% |
| APSB4×3-12 | 45 | 30 | 11 | 1460 | 47% |
| APSB3×2-12 | 23 | 29 | 7.5 | 1450 | 39% |
60Hz Configuration
| Model | Capacity (m³/h) | Head (m) | Power (kW) | Speed (rpm) | Efficiency |
|---|---|---|---|---|---|
| APSB8×6-12 | 335 | 43 | 75 | 1780 | 66% |
| APSB6×5-13 | 240 | 48 | 75 | 1780 | 61% |
| APSB6×5-12 | 196 | 48 | 55 | 1780 | 61% |
| APSB5×4-14 | 149 | 61 | 45 | 1760 | 58% |
| APSB5×4-12 | 120 | 40 | 37 | 1760 | 56% |
| APSB5×4-11 | 112 | 45 | 30 | 1760 | 58% |
| APSB5×4-10 | 105 | 30 | 22 | 1750 | 57% |
| APSB4×3-13 | 80 | 45 | 22 | 1750 | 50% |
| APSB4×3-11 | 55 | 45 | 15 | 1750 | 37% |
| APSB3×2-12 | 28 | 45 | 11 | 1750 | 40% |
| APSB3×2-11 | 25 | 35 | 7.5 | 1750 | 41% |
More Optional Parameters
Professional Centrifugal Sand Pump Detailed Overview
The AIPU centrifugal sand pump is engineered for transferring abrasive slurries containing sand particles, tailings, and suspended solids. With robust construction and high-performance design, these pumps are essential components in drilling fluid systems, dredging operations, and industrial slurry transfer applications.
Primary Application: As a critical component in drilling fluid circulation systems, the sand pump powers mud circulation with capacities up to 335m³/h. It's widely used in petroleum drilling, environmental remediation, dredging operations, and industrial slurry transfer applications.
Applications & Performance
Professional centrifugal sand pumps are essential for:
- Drilling Operations: Powers mud circulation systems with 200-335m³/h capacity
- Environmental Remediation: Handles 50-80m³/h sludge transfer for cleanup operations
- Dredging: 45-61m head capacity for efficient sediment transport
- Industrial Processing: Transfers abrasive slurries in mining and processing plants
Performance Benefits:
- High-efficiency operation reduces energy consumption by up to 30%
- Wear-resistant components extend service life and reduce maintenance costs
- Mission Magnum compatibility ensures easy replacement in existing systems
AIPU Sand Pump Technical Features
- Mission Magnum Compatible: Direct replacement for existing Mission Magnum pumps
- Double Mechanical Seal: Enhanced sealing system prevents leakage
- Hardened Components: Chrome carbide liners for extended wear resistance
- High Efficiency: Up to 66% hydraulic efficiency reduces operating costs
- Robust Construction: Heavy-duty design for continuous operation
- Easy Maintenance: Quick-access design for simplified servicing
- Corrosion Protection: Premium coatings for harsh environments
- Flexible Configuration: Vertical or horizontal mounting options
- Wide Power Range: 7.5-75kW models for various applications
Customization Options
Tailored for global markets, AIPU offers flexible configurations:
- Electrical Standards: 50Hz and 60Hz configurations available
- Mounting Options: Vertical or horizontal installation
- Material Selection: Various wear-resistant materials for different applications
- Power Configuration: Multiple power options from 7.5kW to 75kW
- Color Options: Custom RAL colors per customer specifications
- Accessory Packages: Complete installation and maintenance kits
The AIPU Professional Sand Pump is engineered to withstand the most demanding slurry transfer applications while maintaining optimal performance. Our pumps are designed with operator safety and ease of maintenance in mind, featuring quick-access panels and standardized components for reduced downtime and improved operational efficiency.
Application Scenarios
Versatile applications across various industries and operations
Oil & Gas Drilling
Critical for drilling fluid circulation systems in both onshore and offshore drilling operations.
Dredging Operations
Efficient sediment and slurry transfer in harbor maintenance and land reclamation projects.
Environmental Remediation
Sludge and contaminated material transfer in environmental cleanup and remediation projects.
Mining & Mineral Processing
Abrasive slurry transfer in mining operations and mineral processing plants.
Construction & Piling
Slurry circulation in construction piling operations and foundation engineering.
Industrial Waste Management
Transfer of industrial waste slurries and by-products in processing facilities.
Why Choose AIPU Sand Pump
Industry-leading benefits for your slurry transfer operations
Mission Magnum Compatibility
Direct replacement for Mission Magnum pumps, ensuring easy integration into existing systems without modification.
Extended Service Life
Hardened chrome carbide liners and wear-resistant components significantly extend pump life in abrasive applications.
High Efficiency Operation
Optimized hydraulic design delivers up to 66% efficiency, reducing energy consumption and operating costs.
Reduced Maintenance
Double mechanical seal system and quick-access design minimize downtime and maintenance requirements.
Wide Capacity Range
Comprehensive model selection from 23-335 m³/h ensures optimal pump selection for any application.
Global Compliance
Available in both 50Hz and 60Hz configurations with international electrical standards compliance.
Customer Testimonials
What our clients say about AIPU Sand Pumps
We replaced our Mission Magnum pumps with AIPU sand pumps and the performance has been exceptional. The compatibility made installation straightforward, and we've seen a 25% reduction in maintenance costs due to the improved wear resistance.
The AIPU sand pumps have been running continuously in our dredging operation for over 18 months with minimal downtime. The wear resistance is impressive, and the efficiency has helped us reduce fuel consumption significantly.
We use AIPU pumps in our mineral processing plant for transferring abrasive slurries. The reliability and minimal maintenance requirements have exceeded our expectations. The local technical support has been excellent.
