SLUDGE VACUUM PUMP
High-load vacuum conveying pump with 8m H₂O vacuum capability for transporting solid materials exceeding 80% density. Ideal for drilling cuttings and oily sludge transport with explosion-proof safety.

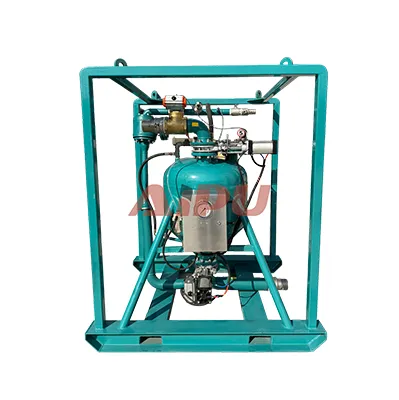

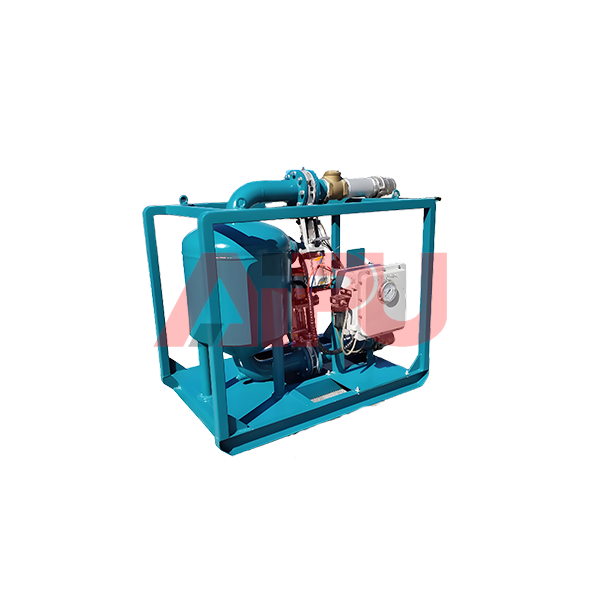

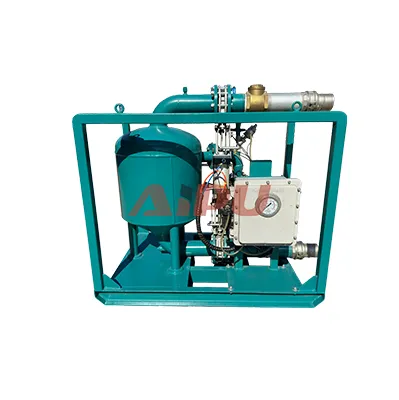

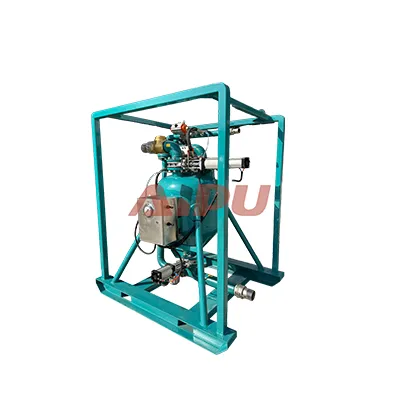

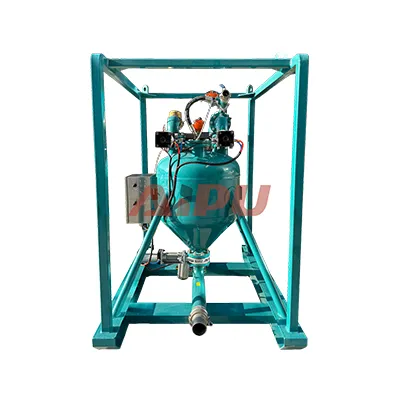

Product Showcase
High-performance sludge vacuum pumps for efficient solids transport in demanding environments
Key Features
High-load vacuum conveying pump with 8m H₂O vacuum capability, ideal for transporting drilling cuttings and oily sludge. Features wear-free Venturi system and explosion-proof design for safe operation in hazardous areas.
High Vacuum Capacity
Generates up to 8m H₂O vacuum (25" HG) for strong material suction with minimal wear parts.
Explosion-Proof Design
100% aerodynamic power, no electrical requirements, safe for hazardous area operation.
High Solid Transport
Transports solid materials exceeding 80% density and high-density materials at high speed.
Low Maintenance
Wear-free Venturi system with no rotating parts inside the tank, reducing maintenance needs.
Technical Specifications
Comprehensive specifications for APVTP series sludge vacuum pumps
| Model | APVTP-40 | APVTP-20 | APVTP-10 |
|---|---|---|---|
| Maximum Conveying Capacity | 40 m³/h | 20 m³/h | 10 m³/h |
| Inlet/Outlet Diameter | 4" (114mm) | 4" (114mm) | 3" (89mm) |
| Vacuum Degree | 85Kpa / 25" HG (8m H₂O) | ||
| Maximum Suction Distance | 50m | ||
| Maximum Discharge Distance | 1000m | 500m | |
| Max Solid Content | - | 80% pure solid phase/powder material | |
| Maximum Particle Size | 75mm | 50mm | |
| Pressure Requirements | 550-785Kpa (80-114PSI) | 550-690Kpa (80-100PSI) | |
| Air Supply Requirement | 17 m³/min (600CFM) | 8 m³/min (280CFM) | 4.3 m³/min (150CFM) |
| Weight | 900kg | 400kg | 350kg |
| Material Suction Time | Adjustable 0-30 seconds | ||
| Material Discharge Time | Adjustable 0-30 seconds | ||
| Operation Method | Alternating suction and discharge | ||
Note: Conveying efficiency varies depending on specific operating conditions and materials used. All models feature 100% aerodynamic power operation with no electrical requirements, ensuring explosion-proof safety in hazardous areas.
Sludge Vacuum Pump Detailed Overview
The sludge vacuum pump is a high-load, strong suction vacuum conveying pump designed for demanding industrial applications. Also known as a solid conveying pump or drilling chip conveying pump, its unique structural design enables operation in the most challenging environments with low maintenance requirements.
Primary Application: Transporting drilling cuttings, oily sludge, and other high-density materials with solid content exceeding 80%. Ideal for oilfield operations, industrial waste handling, and environmental cleanup projects.
Equipment Features and Advantages
Safety and Reliability:
- 100% Aerodynamic Power: Operates without electrical requirements, ensuring safe operation in hazardous areas with explosion-proof safety
- No Rotating Parts: Internal tank design eliminates rotating components, reducing mechanical failure risks and maintenance requirements
- Strong Suction Capability: Generates 25" HG vacuum (8 meters water column) for efficient material suction under strong airflow conditions
Operational Efficiency:
- High-Density Material Handling: Capable of transporting materials with over 80% solid content at high speeds
- Compact and Portable: Excellent overall strength with easy lifting and movement capabilities
- Automated Operation: Features automatic material suction and discharge functions
- Wear-Free Design: Venturi system with almost no wear parts, reducing maintenance costs and downtime
Design and Construction:
- Robust Construction: Built for operation in difficult environments with low maintenance rates
- Pressure Equipment Compliance: Designed as pressure equipment, with user responsibility for country-specific approval applications
- Efficient Venturi System: High-efficiency Venturi device generates strong vacuum with minimal energy consumption
The sludge vacuum pump is commonly used for transporting:
- Drilling cuttings from oil and gas operations
- Oily sludge from tank cleaning and maintenance
- Industrial waste materials with high solid content
- Powder materials in manufacturing processes
- Environmental cleanup and remediation materials
AIPU provides flexible configurations for international markets based on actual user needs. Customization options include:
- Surface coating color customization
- Special material compatibility adaptations
- Specific pressure and flow rate requirements
- Integration with existing systems and equipment
Technical Note: The equipment operates on 100% aerodynamic power, eliminating electrical hazards and making it suitable for explosive atmospheres. The alternating suction and discharge system allows for continuous operation with adjustable timing from 0 to 30 seconds for both suction and discharge cycles.
Application Scenarios
Versatile applications across multiple industries and operations
Drilling Cuttings Transport
Efficiently transports drilling cuttings from oil and gas operations with high solid content handling capability.
Oily Sludge Handling
Handles oily sludge from tank cleaning, refinery operations, and environmental cleanup projects.
Industrial Waste Transport
Transports industrial waste materials with high solid content for disposal or recycling operations.
Hazardous Area Operations
Explosion-proof design enables safe operation in hazardous areas without electrical hazards.
Environmental Remediation
Used in environmental cleanup projects for transporting contaminated materials and sludge.
Material Transfer Operations
Facilitates material transfer between processing units, storage tanks, and disposal sites.
Why Choose Our Sludge Vacuum Pump
Industry-leading advantages for efficient and safe solids transport
Explosion-Proof Safety
100% aerodynamic operation eliminates electrical hazards, ensuring safe use in explosive atmospheres and hazardous areas.
High Vacuum Performance
Generates 8m H₂O vacuum (25" HG) for strong material suction with efficient Venturi system and minimal wear parts.
High Solid Content Handling
Transports materials with over 80% solid content, ideal for drilling cuttings, oily sludge, and industrial waste.
Low Maintenance Design
Wear-free Venturi system with no rotating internal parts reduces maintenance requirements and operational downtime.
Flexible Operation
Adjustable suction and discharge timing (0-30 seconds) with alternating operation for continuous material handling.
Robust Construction
Industrial-grade construction with excellent strength for operation in demanding environments and easy mobility.
Customer Testimonials
What our clients say about our sludge vacuum pump solutions
We've been using the APVTP-40 vacuum pump for drilling cuttings transport for over two years. The explosion-proof design gives us peace of mind in hazardous areas, and the maintenance has been minimal despite heavy use.
The high vacuum capability handles our oily sludge perfectly. We've reduced transport time by 40% compared to our previous system. The no-electrical design is perfect for our refinery environment.
AIPU's technical support was excellent during installation. The pump handles our industrial waste with 85% solid content without issues. The adjustable timing features allow us to optimize for different materials.
